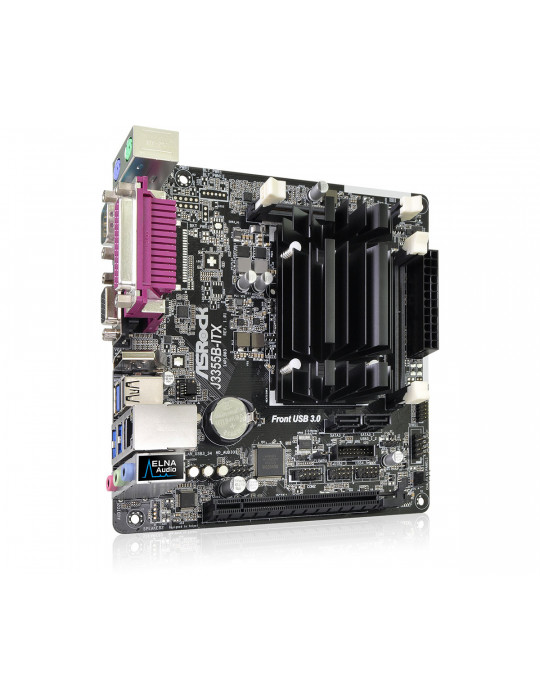

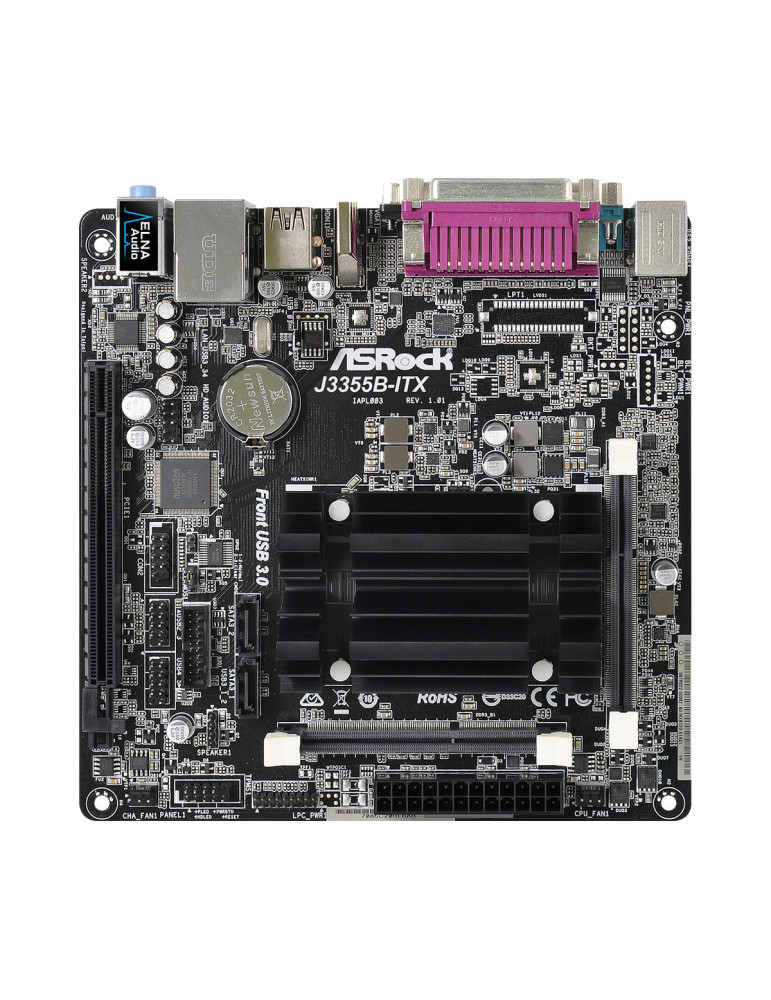

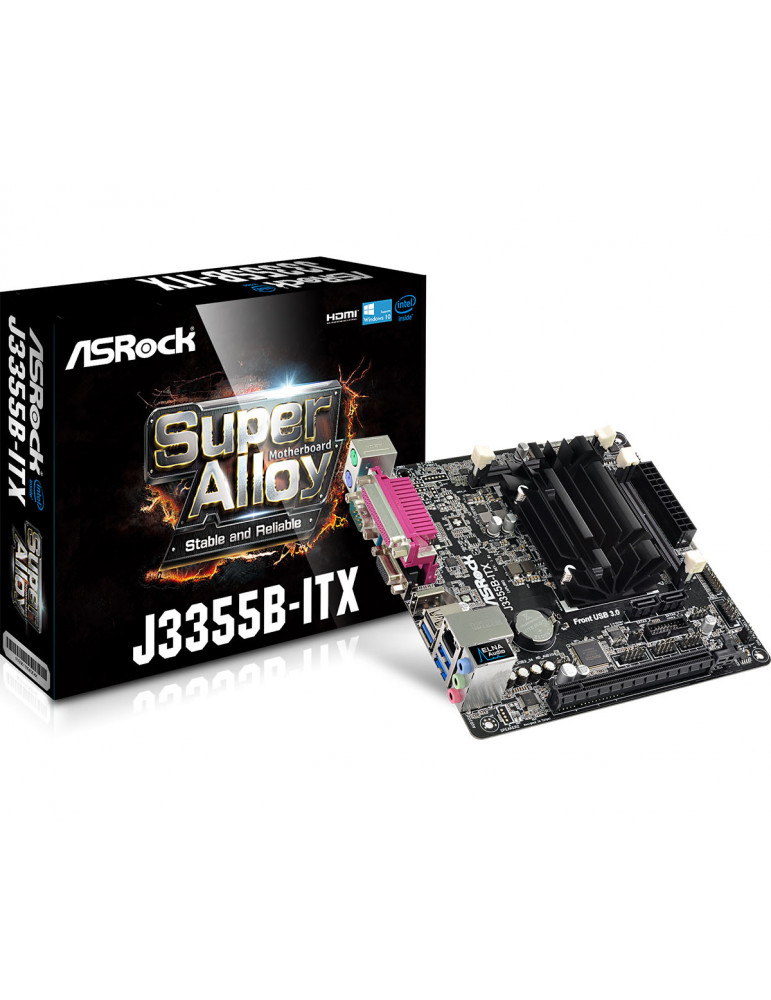

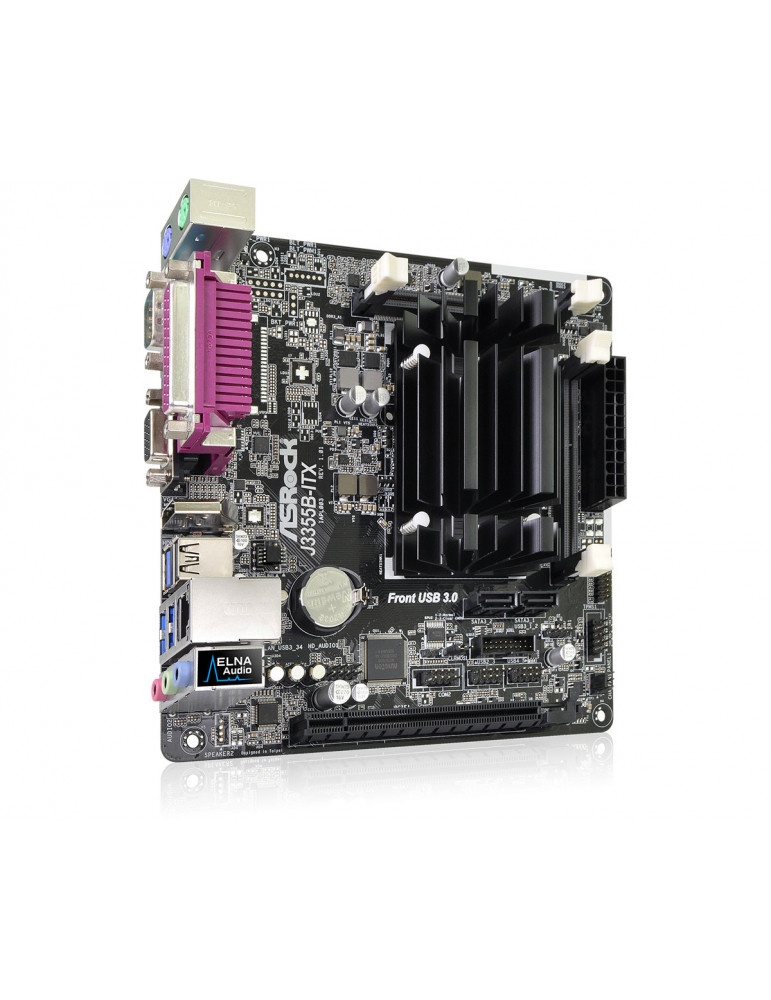

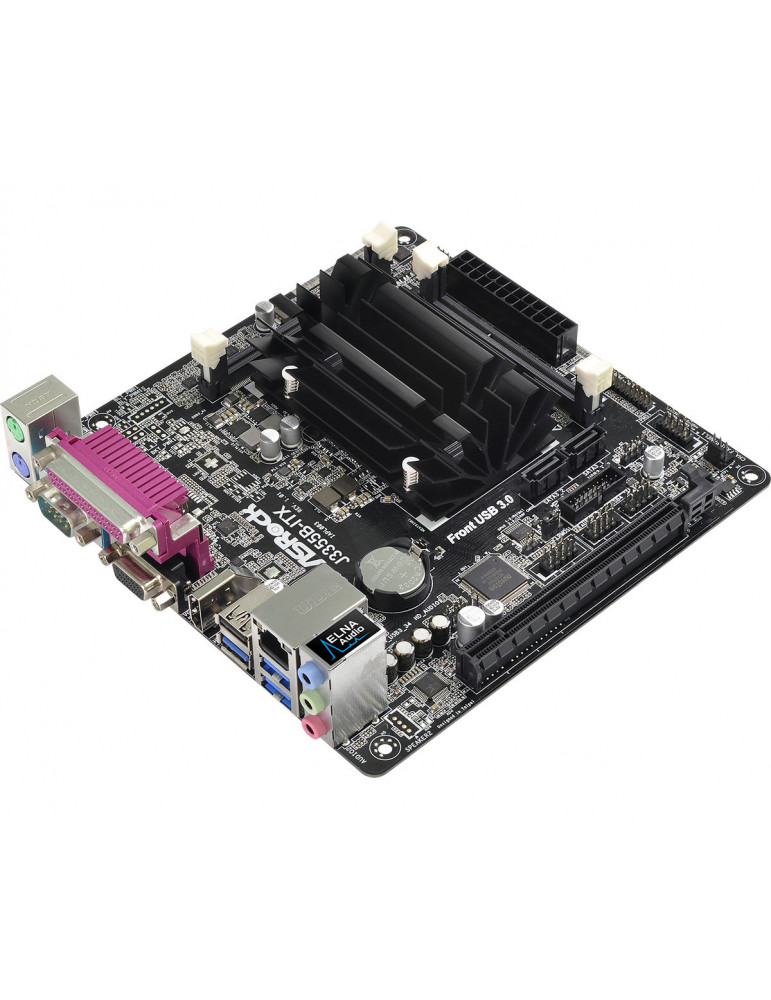

Дънна платка Asrock J3355B-ITX с процесор J3355

Дънна платка Asrock J3355B-ITX с процесор J3355

Дънна платка Asrock J3355B-ITX с процесор J3355
Дънна платка Asrock J3355B-ITX с процесор J3355
Asrock
ASROCK J3355B-ITX
  не е избрано

100,00 лв.

Количество
Добави в желани
Сравни
Наличност във външен склад

  Цената е с включен ДДС
  Условия за доставка
на 12 вноски по 9.33 лв.

Вземи желания продукт сега, избери подходяща за теб схема на изплащане:

Добави в количката
Заяви и купи сега
Откажи
C.C.Ver. 1.4.2

Поръчка без регистрация

Само попълнете 4 полета


Описание
Manufacturer ASROCK
Mnfr Part # -
Model J3355B-ITX
Socket FCBGA1296
Graphics - Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 700MHz); - DirectX 12, Pixel Shader 5.0; - Dual graphics output: support D-Sub and HDMI ports by independent display controllers; - Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9; - Supports HDCP with HDMI Port; - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
CPU's supported - Intel® Dual-Core Processor J3355 (up to 2.5 GHz)
Chipset -
Expansion Slots - 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)
Storage - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Memory type - Dual Channel DDR3/DDR3L Memory Technology; - 2 x DDR3/DDR3L SO-DIMM Slots*; - Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory; - Max. capacity of system memory: 16GB**

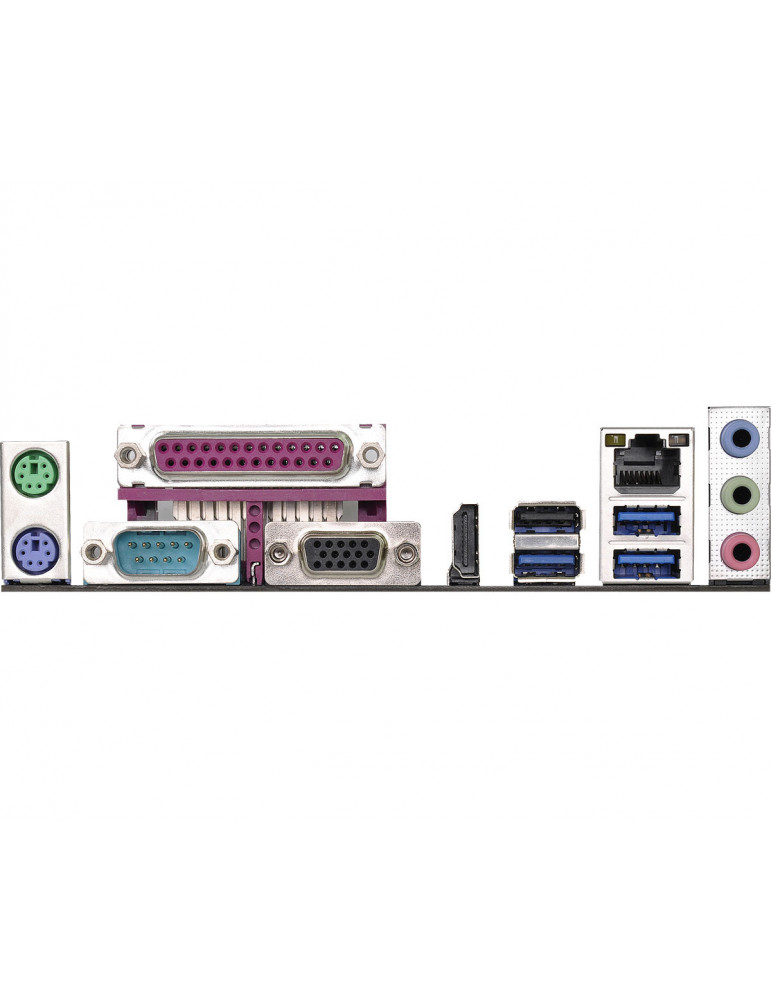

I/O - 1 x PS/2 Mouse Port; - 1 x PS/2 Keyboard Port; - 1 x Parallel Port (ECP/EPP Support); - 1 x Serial Port: COM1; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)); - 3 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors - 1 x COM Port Header; - 1 x Chassis Intrusion Header; - 1 x TPM Header; - 1 x CPU Fan Connector (3-pin); - 1 x Chassis Fan Connector (3-pin); - 1 x 24 pin ATX Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))*
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*; - Supports Surge Protection (ASRock Full Spike Protection); - ELNA Audio Caps
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111GR; - Supports Wake-On-WAN; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection (ASRock Full Spike Protection); - Supports LAN Cable Detection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS - 64Mb AMI UEFI Legal BIOS with GUI support; - Supports Plug and Play; - ACPI 5.0 compliant wake up events; - Supports jumperfree; - SMBIOS 3.0 support
Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - Solid Capacitor design
OS - Microsoft® Windows® 10 64-bit*; - Linux: Ubuntu 16.10 / Fedora 25
Other -
Warranty 36 Months
Подробности за продукта
ASROCK J3355B-ITX

Техническо описание

  • не е избрано
  • не е избрано
  • не е избрано
  • не е избрано
  • не е избрано
  • не е избрано
  • не е избрано
  • не е избрано
  • HDMI
    PS/2
    RJ-45 LAN
    VGA (D-SUB)
Ревю
