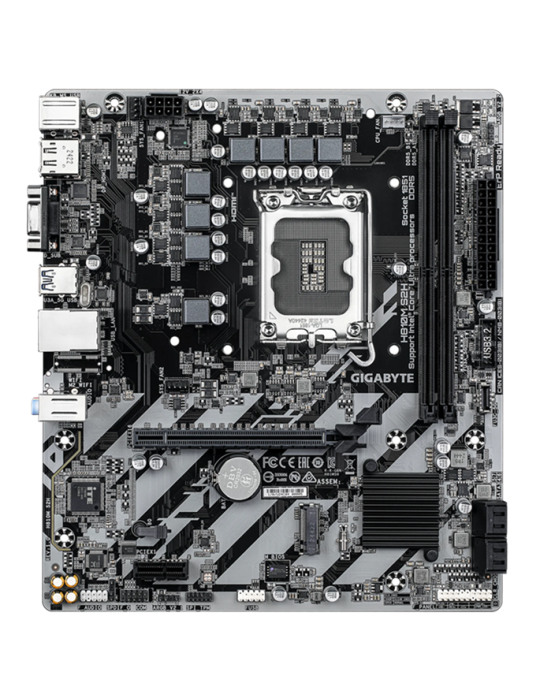

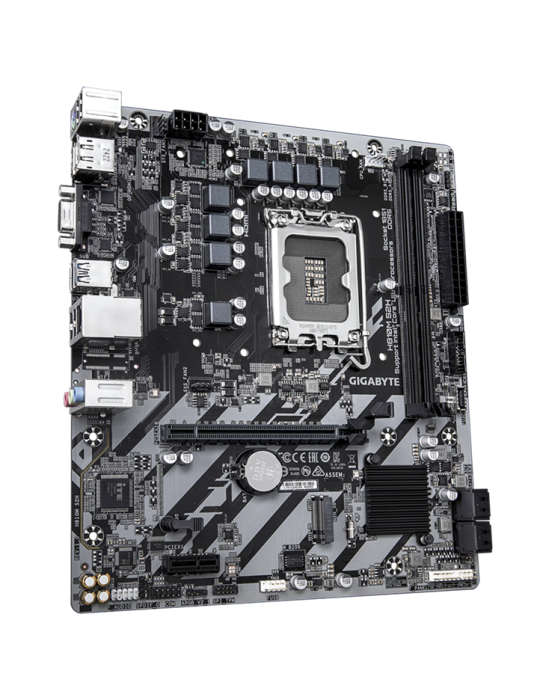

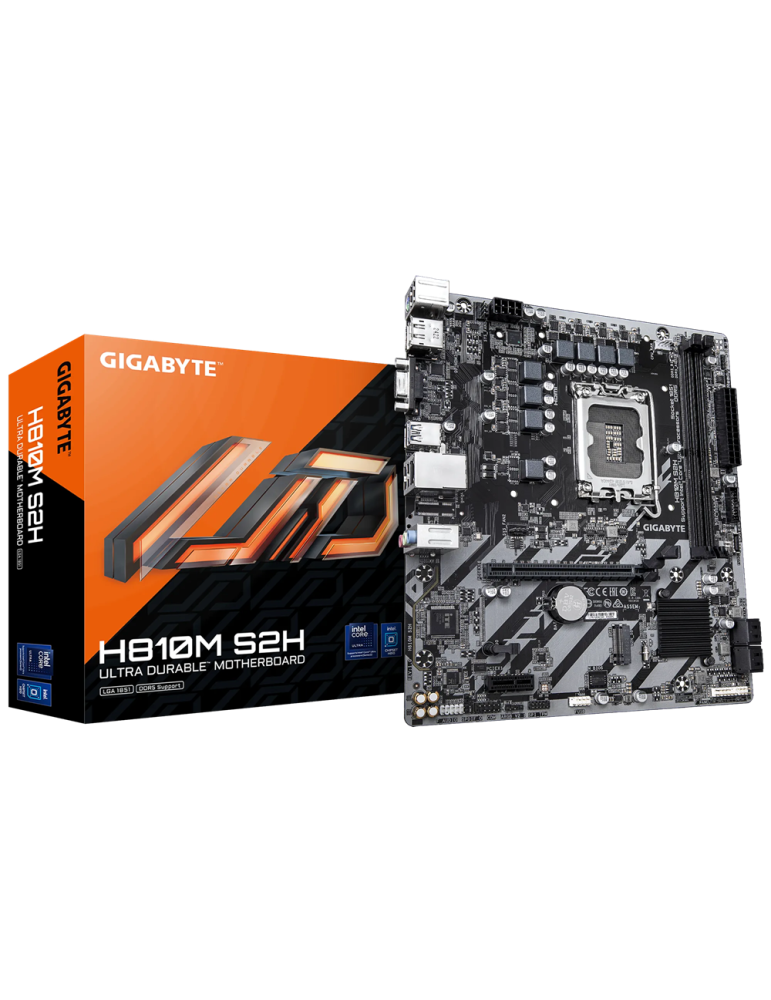

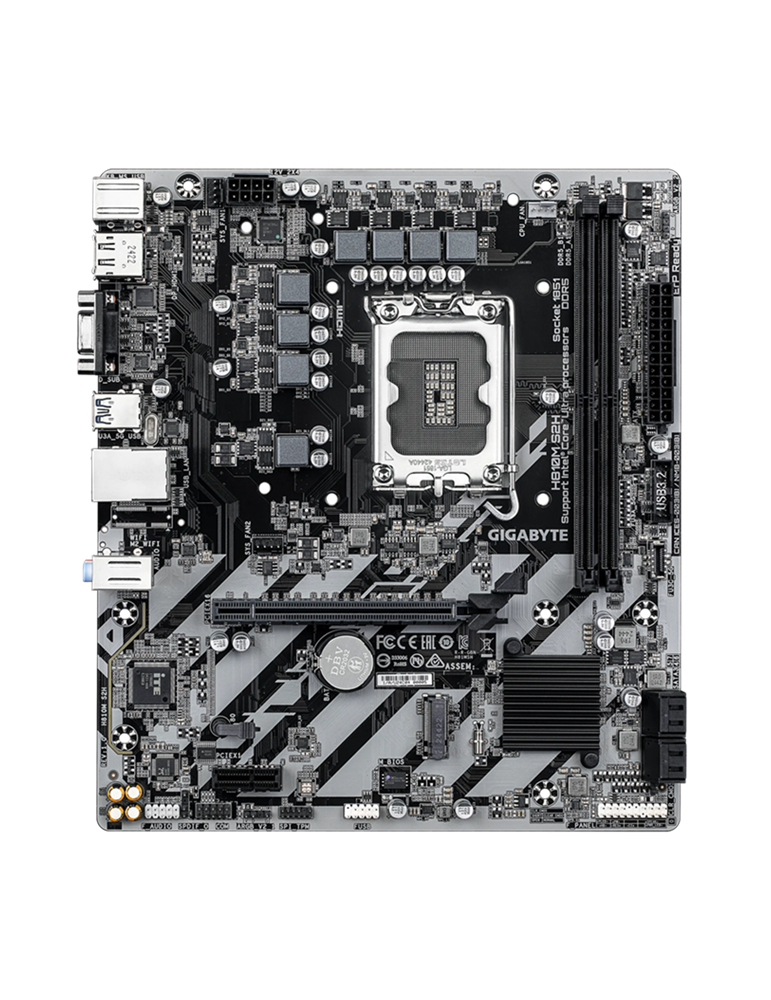

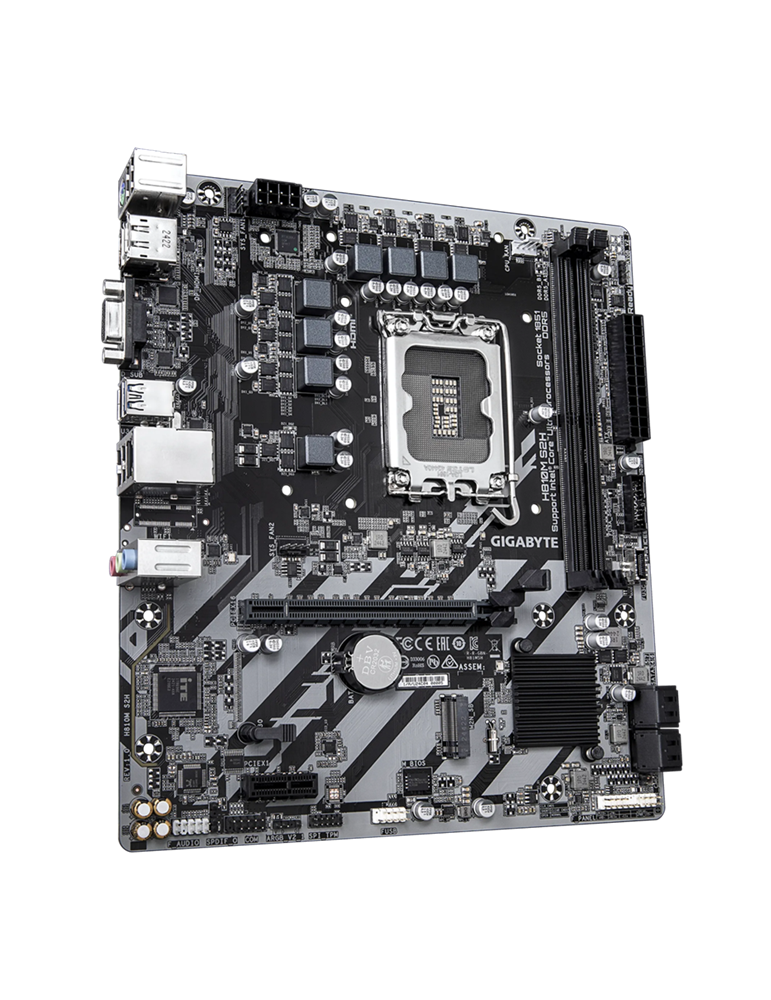

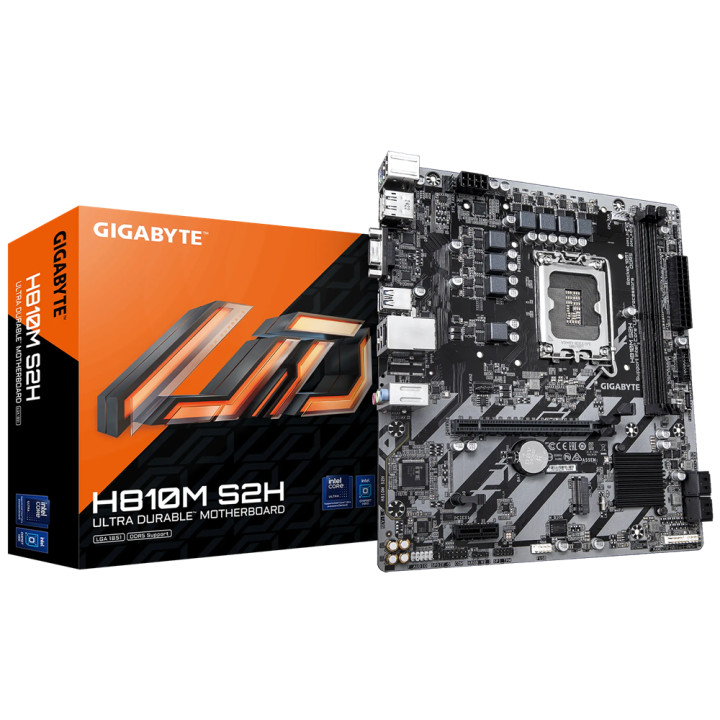

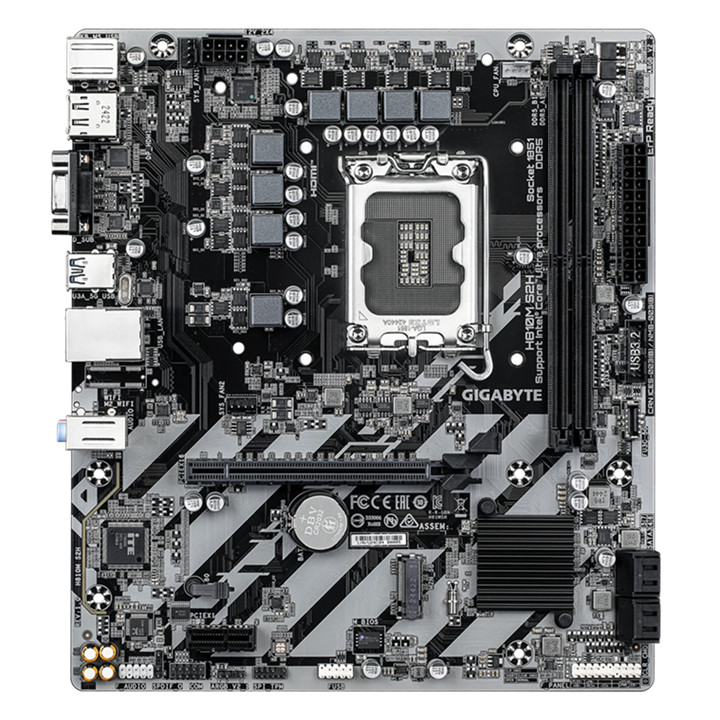

Дънна платка Gigabyte H810M S2H, LGA1851
H810M S2H
36 месеца
217,00 лв.
Цената е с включен ДДС
Условия за доставка
Вземи желания продукт сега, избери подходяща за теб схема на изплащане:
Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!
Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
Поръчка без регистрация
Само попълнете 4 полета| USB | Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header;- 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header);Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel |
| Производител | GIGABYTE |
| Тип памет | Support for DDR5 6400/5600 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules |
| Характеристики | Support for GIGABYTE Control Center (GCC);Support for Q-Flash;Support for Smart Backup |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Чипсет | Intel® H810 Express Chipset |
| Видео карта | Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz;* Support for DisplayPort 2.1 version.;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time |
| Разширителни слотове | CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Съхранение | Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Вх/Изх | iTE® I/O Controller Chip |

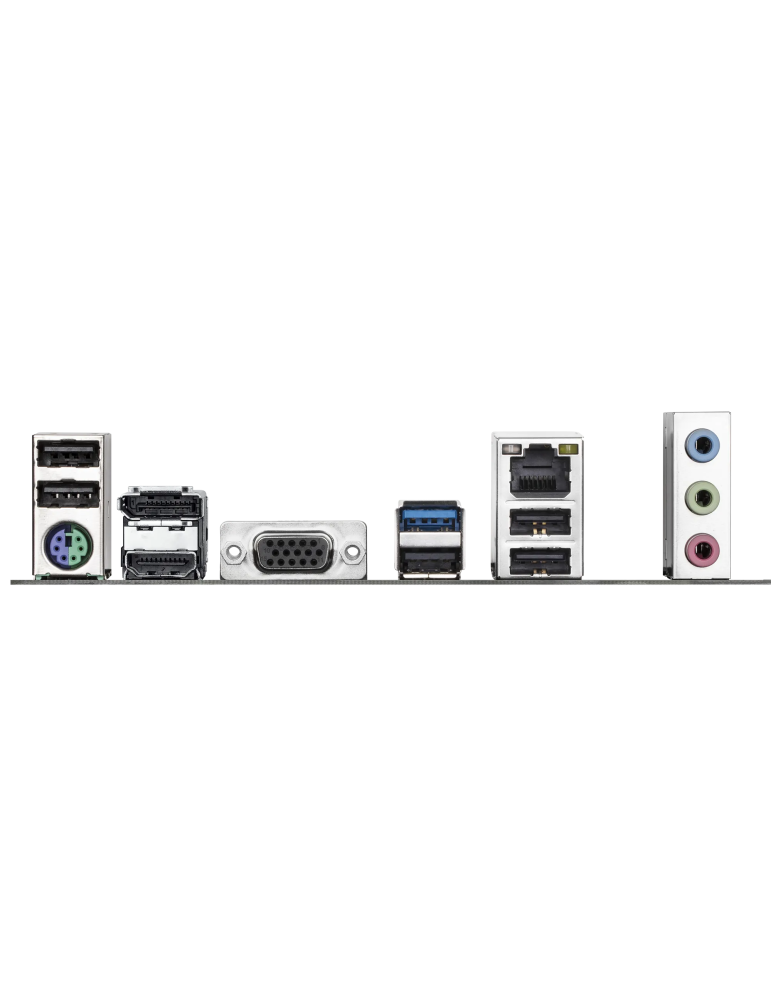

| Конектори | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable RGB Gen2 LED strip headers;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x S/PDIF Out header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;1 x PS/2 keyboard/mouse port;1 x HDMI port (Note);1 x DisplayPort (Note);1 x D-Sub port;1 x USB 3.2 Gen 1 port;5 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks |
| Аудио | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Форм фактор | Micro ATX Form Factor; 24.4cm x 21.5cm |
| OS | Support for Windows 11 64-bit;Support for Windows 10 64-bit;Norton® Internet Security (OEM version);LAN bandwidth management software |
H810M S2H
Техническо описание
- Gigabyte
- LGA1851
- Intel H810
- Intel
- DDR5
- Micro ATX
- 2
- 36 месеца
- RJ-45 LAN
