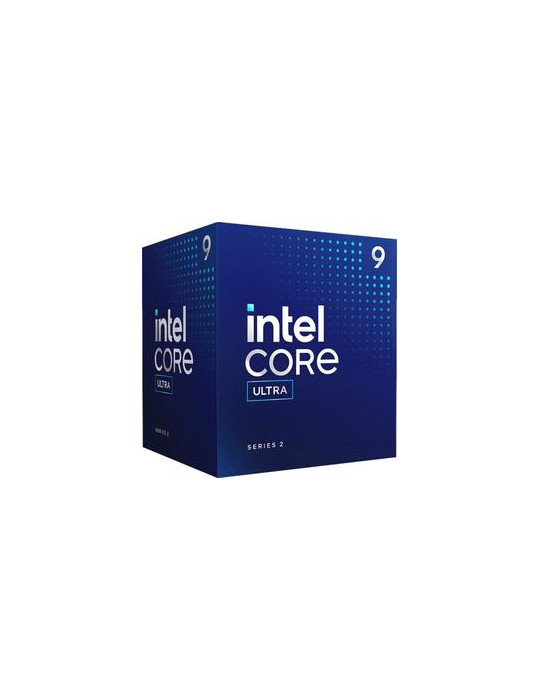

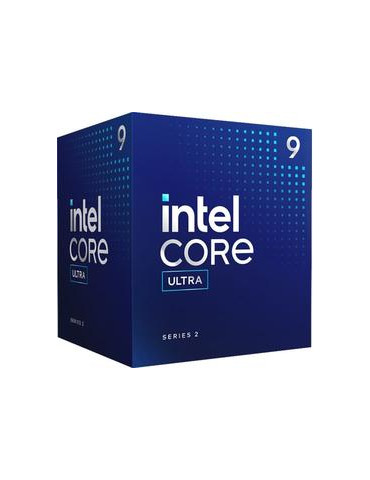

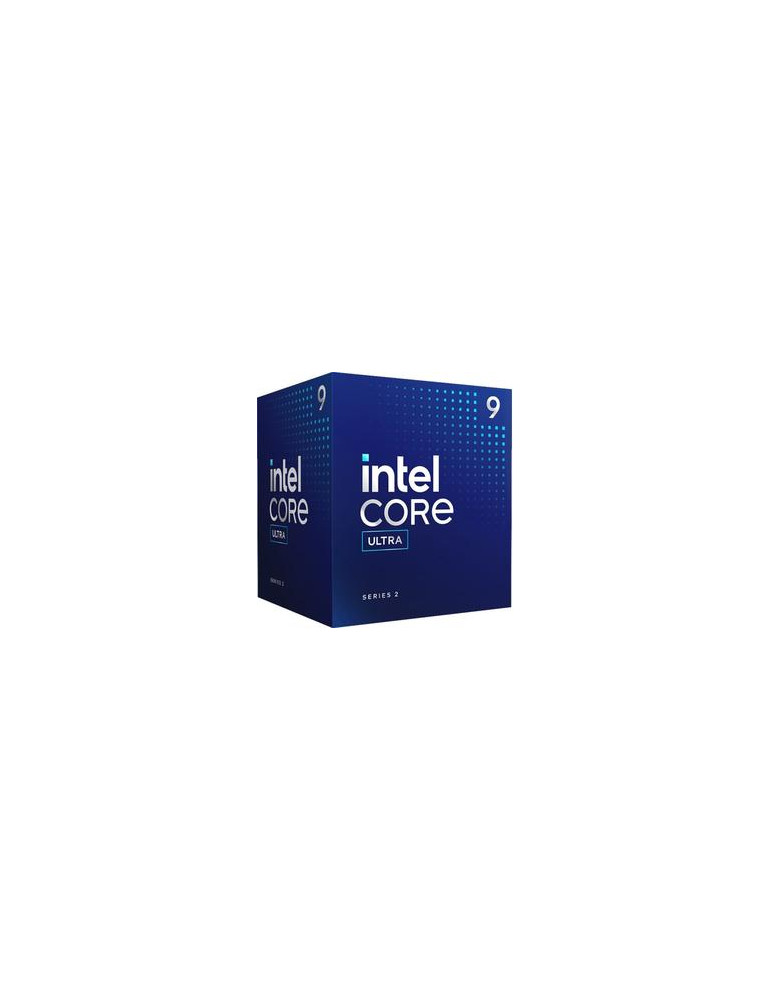

Intel Core Ultra 9 285
BX80768285
Box

Essentials
Product Collection: Intel Core Ultra Processors (Series 2)
Code Name: Products formerly Arrow Lake
Vertical Segment: Desktop
Processor Number: 285
Overall Peak TOPS (Int8): 36

CPU Specifications
Total Cores: 24
# of Performance-cores: 8
# of Efficient-cores: 16
Total Threads: 24
Max Turbo Frequency: 5.6 GHz
Intel Thermal Velocity Boost Frequency: 5.6 GHz
Intel Turbo Boost Max Technology 3.0 Frequency: 5.5 GHz
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Base Frequency: 2.5 GHz
Efficient-core Base Frequency: 1.9 GHz
Cache: 36 MB Intel Smart Cache
Total L2 Cache: 40 MB
Processor Base Power: 65 W
Maximum Turbo Power: 182 W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO | WindowsML | DirectML | ONNX RT | WebNN
CPU Lithography: TSMC N3B

Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported: Yes

GPU Specifications:
GPU Name‡: Intel Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 2 GHz
GPU Peak TOPS (Int8): 8
Graphics Output: DP2.1 UHBR20 | HDM2.1 FRL 12GHz | eDP1.4b
Xe-cores: 4
Max Resolution (HDMI) : 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP): 8K @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
DirectX* Support: 12
OpenGL* Support: 4.5
OpenCL* Support: 3
Intel Quick Sync Video: Yes
# of Displays Supported: 4
Device ID: 0x7D67
Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes

NPU Specifications:
NPU Name‡: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO | WindowsML | DirectML | ONNX RT | WebNN

Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4
Max # of PCI Express Lanes: 24

Package Specifications:
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2022C
Max Operating Temperature: 105 °C

Advanced Technologies:
Intel Volume Management Device (VMD): Yes
Intel Gaussian & Neural Accelerator: 3.5
Intel Thread Director: Yes
Intel Speed Shift Technology: Yes
Intel Thermal Velocity Boost: Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel Turbo Boost Technology: 2
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1 | Intel SSE4.2 | Intel AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes

Security & Reliability
Intel vPro Eligibility: Intel vPro Enterprise | Intel vPro Platform
Intel Threat Detection Technology (TDT): Yes
Intel Active Management Technology (AMT): Yes
Intel Standard Manageability (ISM): Yes
Intel Remote Platform Erase (RPE): Yes
Intel One-Click Recovery: Yes
Intel Control-Flow Enforcement Technology: Yes
Intel Total Memory Encryption - Multi Key: Yes
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel OS Guard: Yes
Intel Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel Stable IT Platform Program (SIPP): Yes
Intel Virtualization Technology with Redirect Protection (VT-rp): Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
