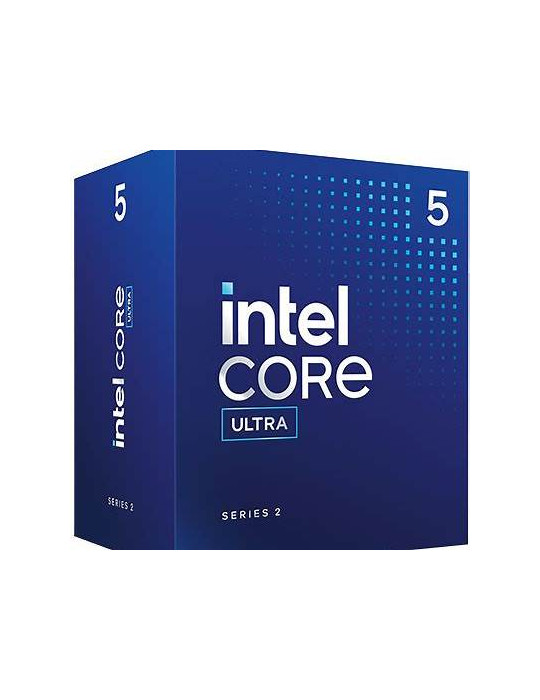

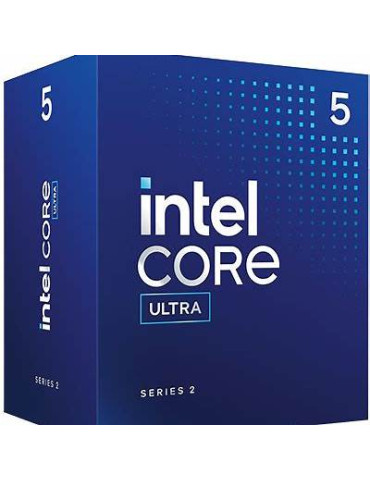

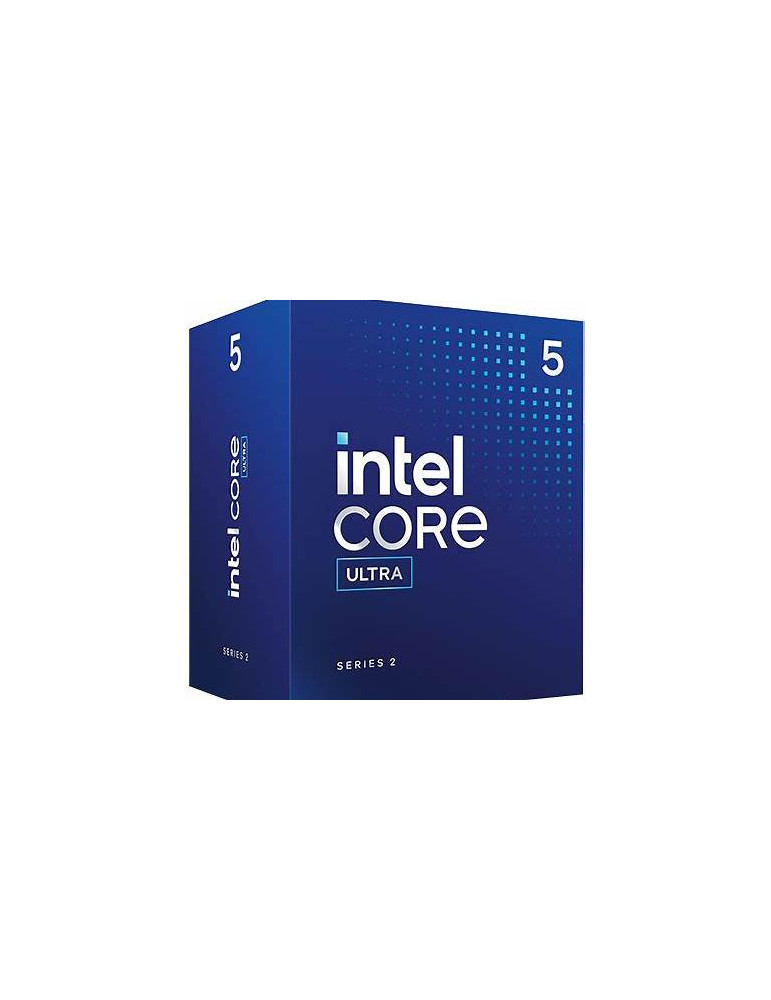

Intel Core Ultra 5 225F
BX80768225F
Box

Essentials
Product Collection: Intel Core Ultra Processors (Series 2)
Code Name: Products formerly Arrow Lake
Vertical Segment: Desktop
Processor Number: 225F
Overall Peak TOPS (Int8): 19

CPU Specifications
Total Cores: 10
# of Performance-cores: 6
# of Efficient-cores: 4
Total Threads: 10
Max Turbo Frequency: 4.9 GHz
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core Base Frequency: 3.3 GHz
Efficient-core Base Frequency: 2.7 GHz
Cache: 20 MB Intel Smart Cache
Total L2 Cache: 22 MB
Processor Base Power: 65 W
Maximum Turbo Power: 121 W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO | WindowsML | DirectML | ONNX RT | WebNN
CPU Lithography: TSMC N3B

Memory Specifications:
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2

NPU Specifications:
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO | WindowsML | DirectML | ONNX RT | WebNN

Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4
Max # of PCI Express Lanes: 24

Package Specifications:
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2022C
Max Operating Temperature: 105 °C

Advanced Technologies
Intel Volume Management Device (VMD): Yes
Intel Gaussian & Neural Accelerator: 3.5
Intel Thread Director: Yes
Intel Speed Shift Technology: Yes
Intel Turbo Boost Technology: 2
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1 | Intel SSE4.2 | Intel AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes

Security & Reliability:
Intel Standard Manageability (ISM): Yes
Intel Control-Flow Enforcement Technology: Yes
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel OS Guard: Yes
Intel Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
