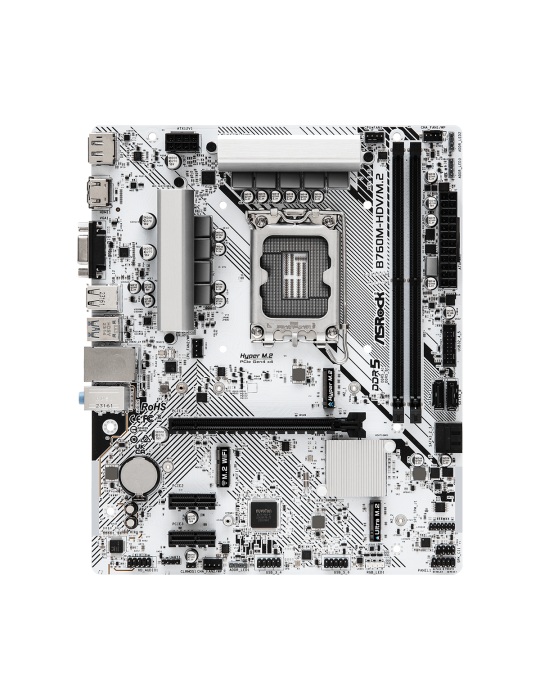

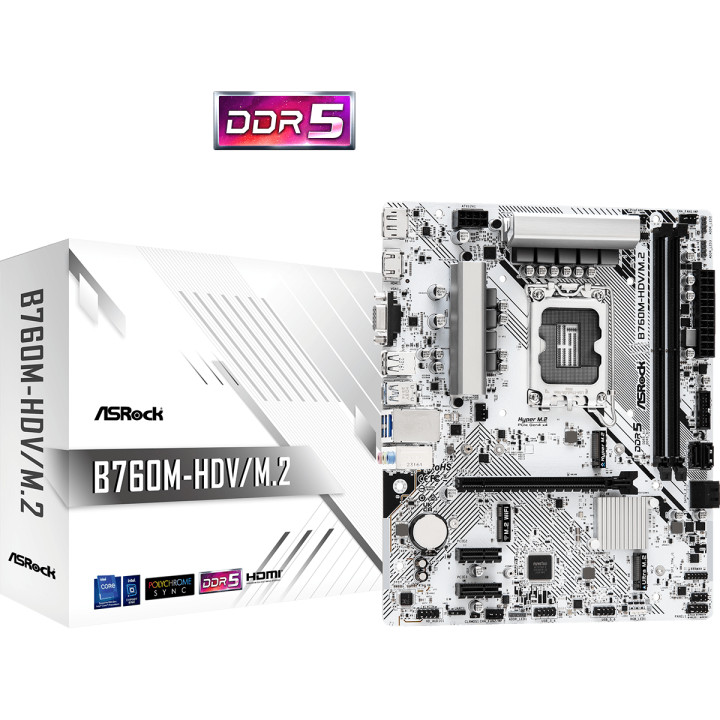

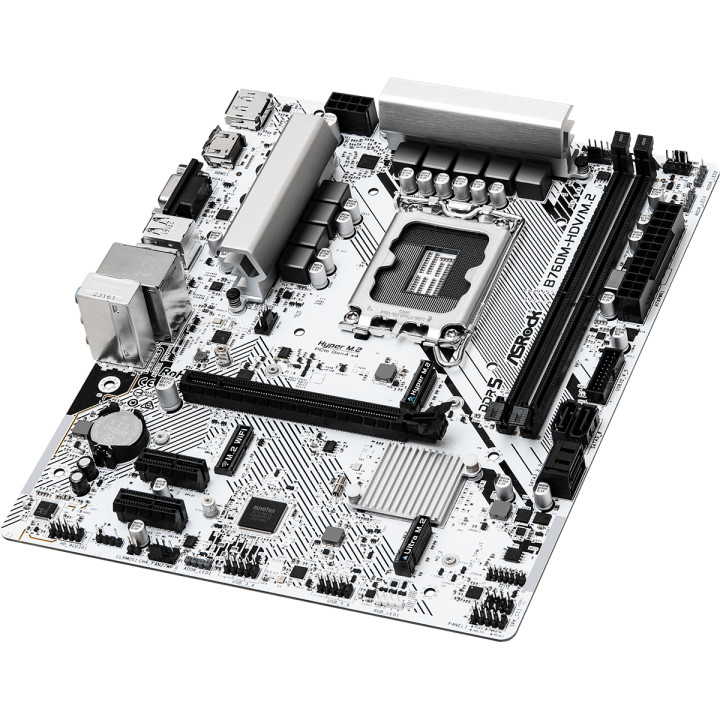

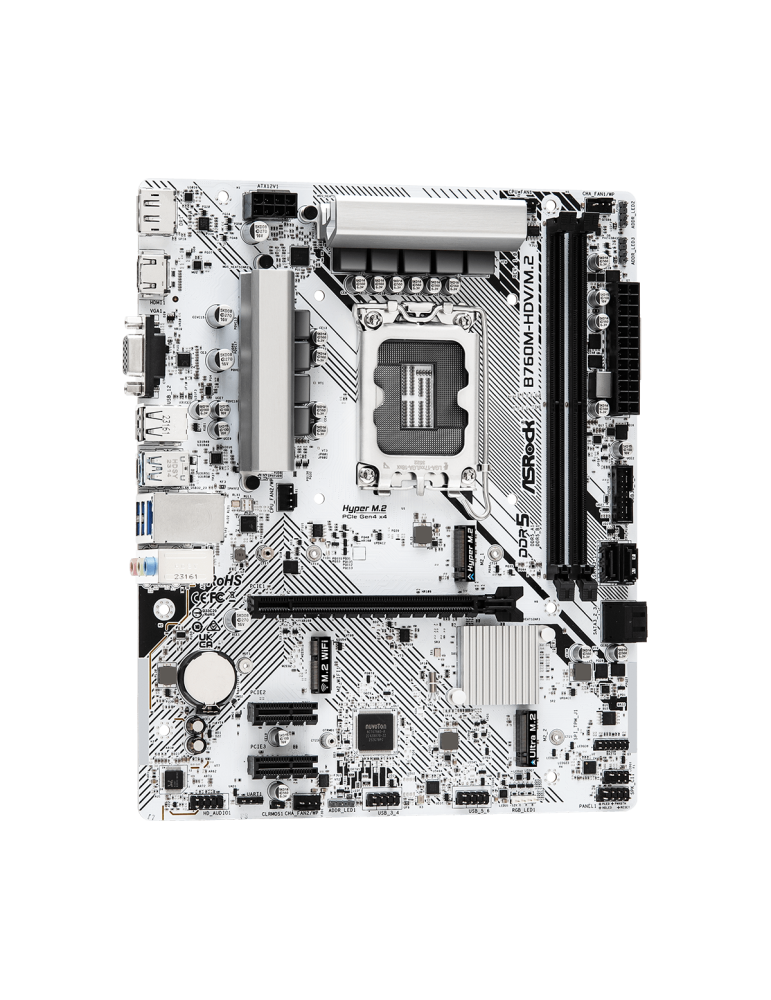

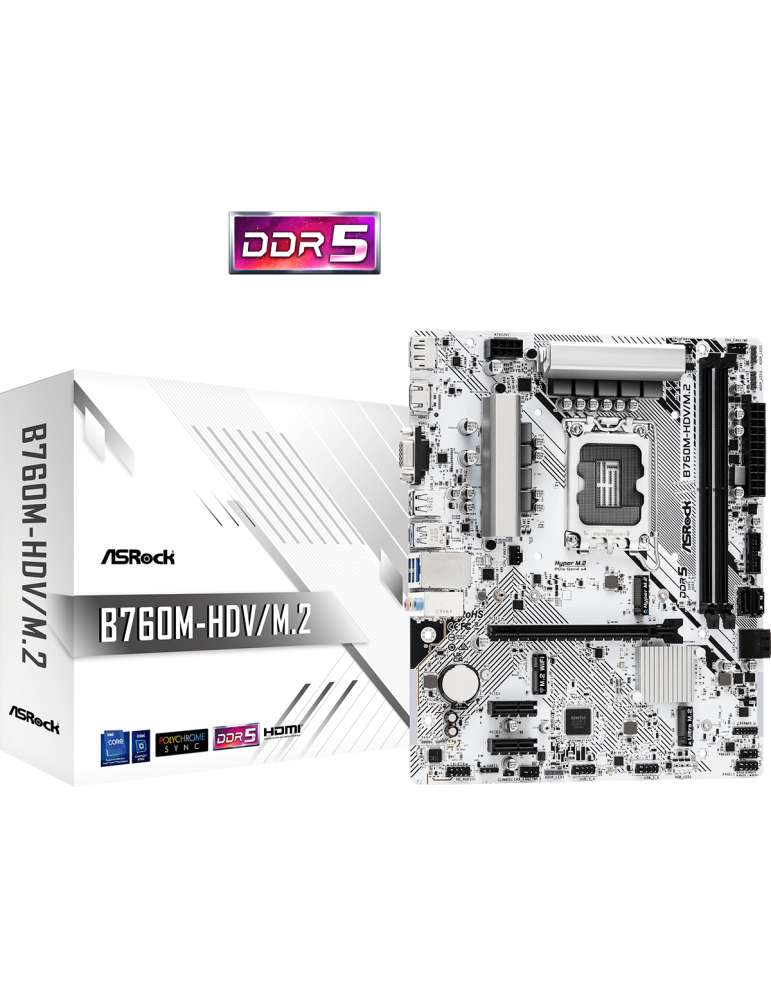

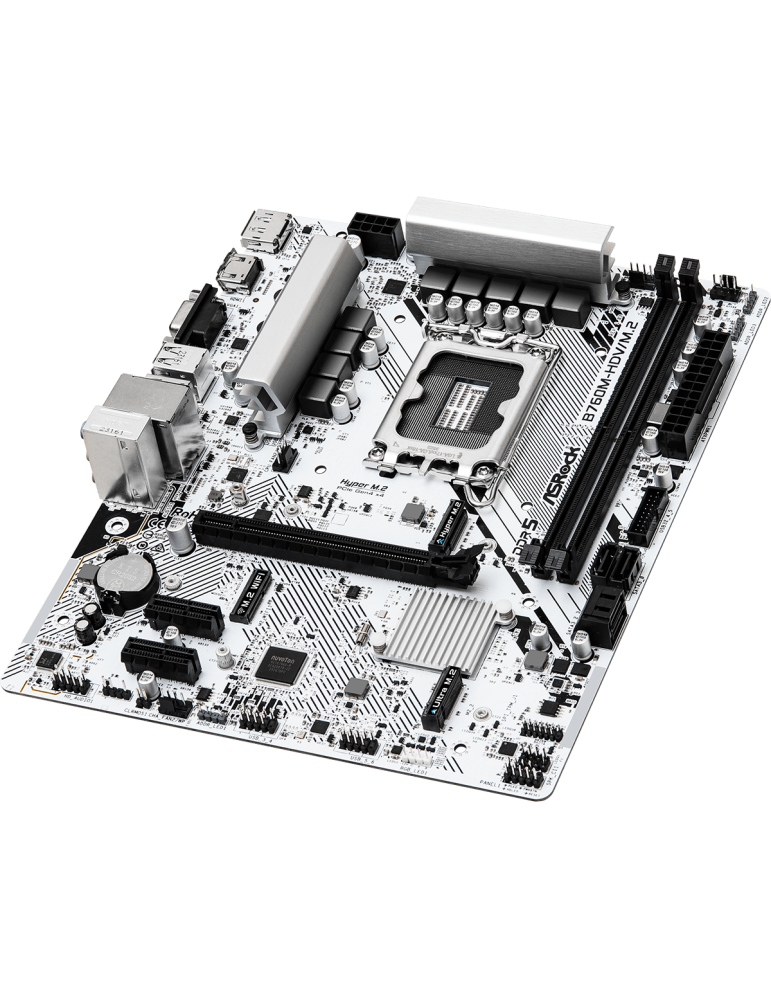

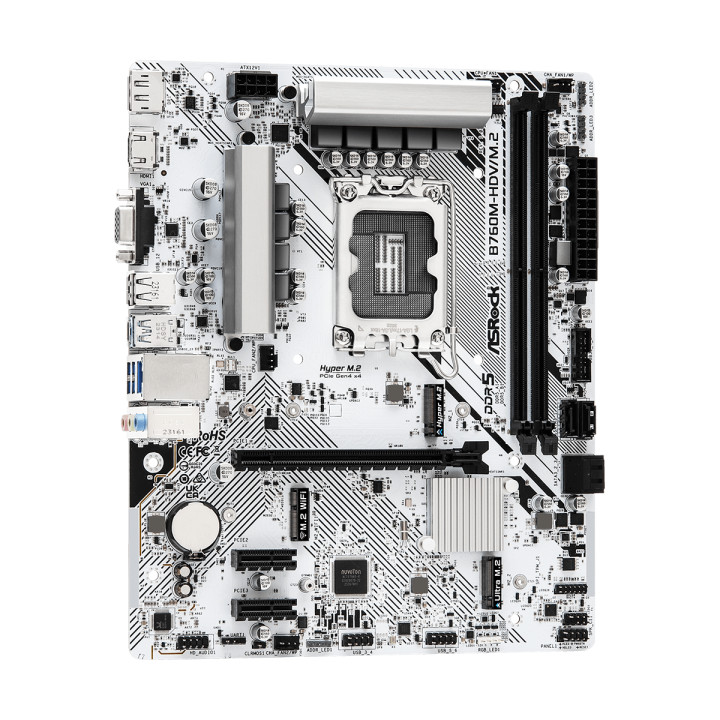

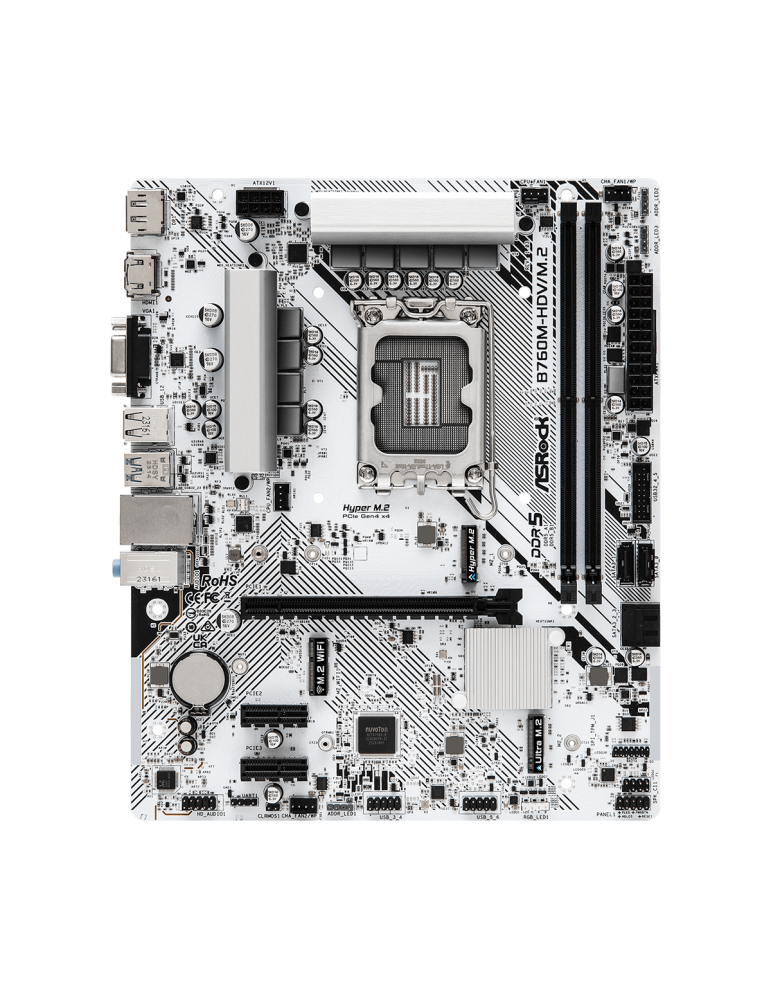

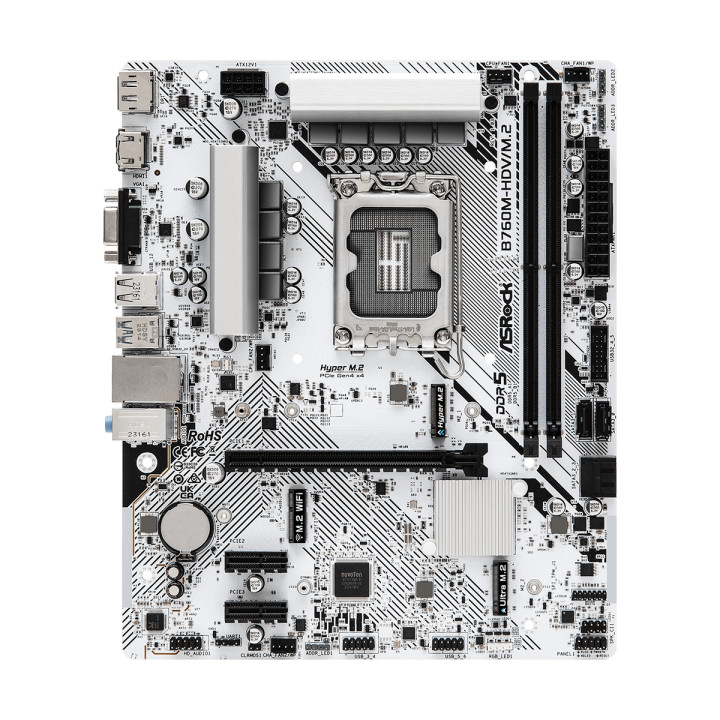

Дънна платка ASRock B760M-HDV/M.2, LGA1700, DDR5, PCI-E 4.0, 2x M.2, USB Type-C, Micro ATX

Дънна платка ASRock B760M-HDV/M.2, LGA1700, DDR5, PCI-E 4.0, 2x M.2, USB Type-C, Micro ATX

Дънна платка ASRock B760M-HDV/M.2, LGA1700, DDR5, PCI-E 4.0, 2x M.2, USB Type-C, Micro ATX
Дънна платка ASRock B760M-HDV/M.2, LGA1700, DDR5, PCI-E 4.0, 2x M.2, USB Type-C, Micro ATX
Дънна платка ASRock B760M-HDV/M.2, B760, LGA1700, DDR5, PCI-E 4.0 (HDMI&DP&VGA), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 1 Type-C, 3x USB 3.2 Gen 1 Type-A, Micro ATX
Asrock
B760M-HDV/M.2
  36 месеца

205,00 лв.

Количество
Добави в желани
Сравни
Наличност във външен склад

  Цената е с включен ДДС
  Условия за доставка
на 12 вноски по 19.13 лв.

Вземи желания продукт сега, избери подходяща за теб схема на изплащане:

Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!

Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
C.C.Ver. 1.4.2

Поръчка без регистрация

Само попълнете 4 полета


Описание
CPU's supported- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Technology (ABT)
Тип памет- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
Чипсет- Intel® B760
Видео карта- Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Expansion SlotsCPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
StorageChipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes**; - 4 x SATA3 6.0 Gb/s Connectors

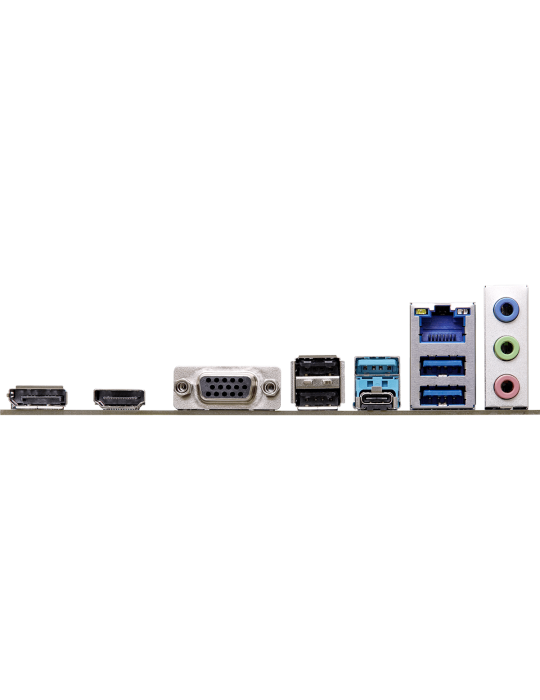

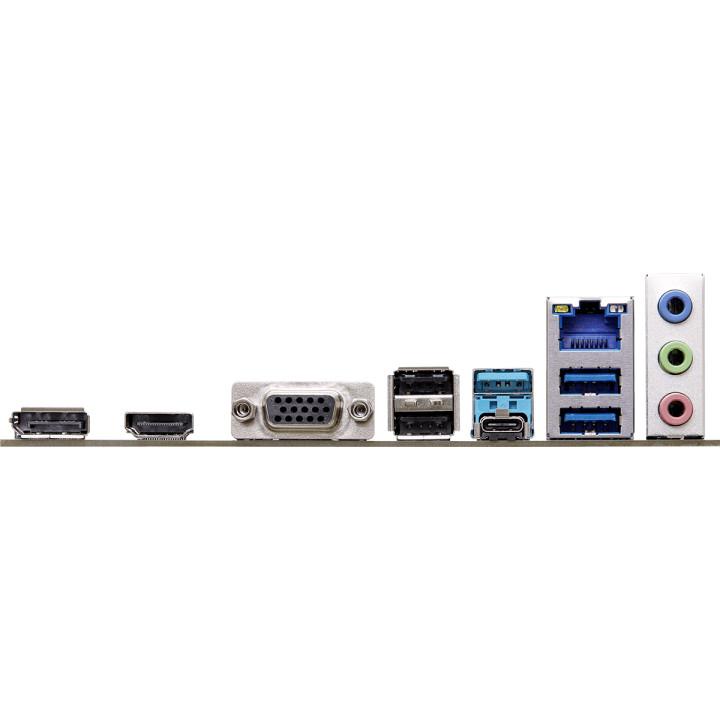

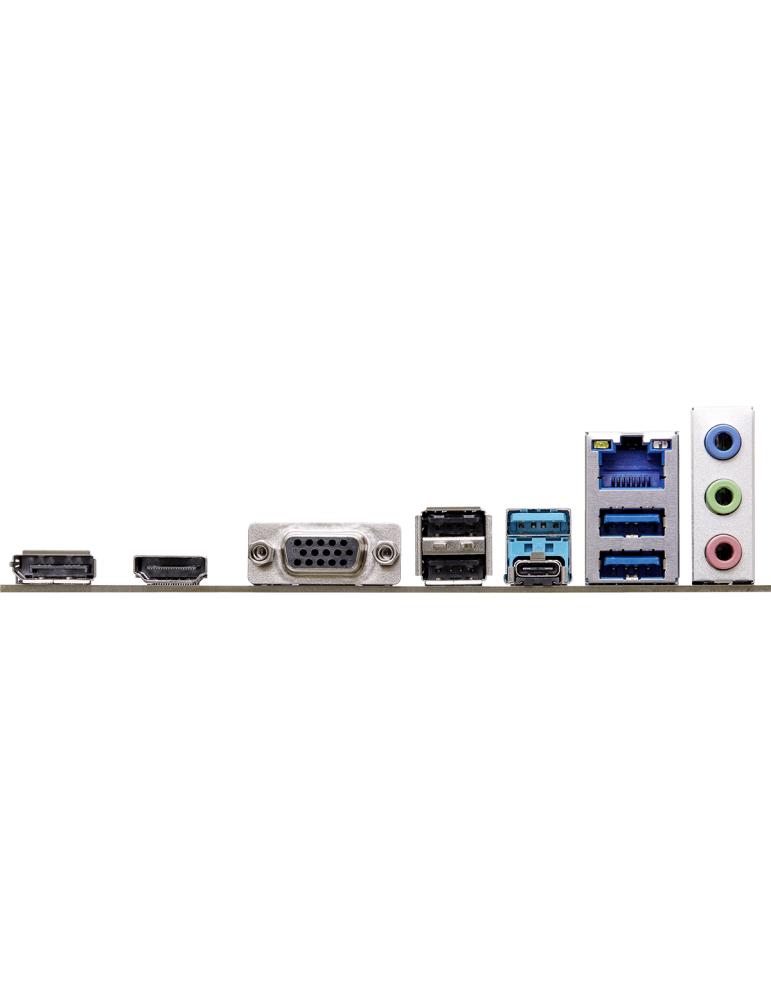

Вх/Изх- 2 x Antenna Mounting Points; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Конектори- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
Форм фактор- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS- Microsoft Windows® 10 64-bit / 11 64-bit
Гаранция36 Months
Подробности за продукта
B760M-HDV/M.2

Техническо описание

  • Asrock
  • LGA1700
  • Intel B760
  • Intel
  • DDR5
  • Micro ATX
  • 2
  • 36 месеца
  • Display Port
    HDMI
    VGA (D-SUB)
