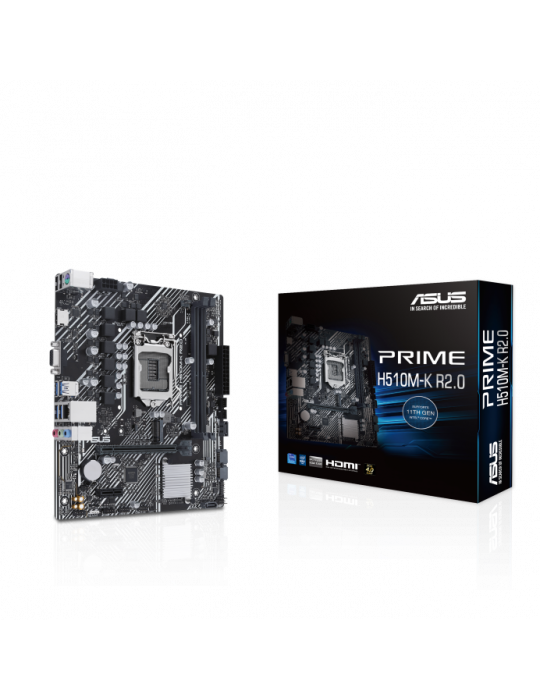

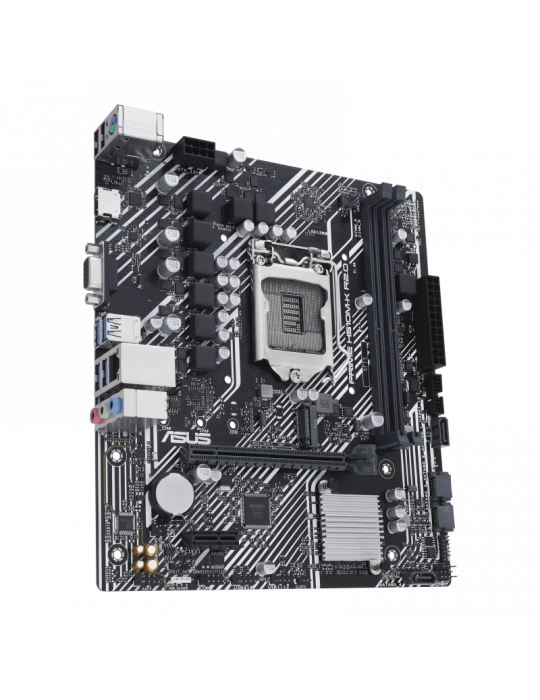

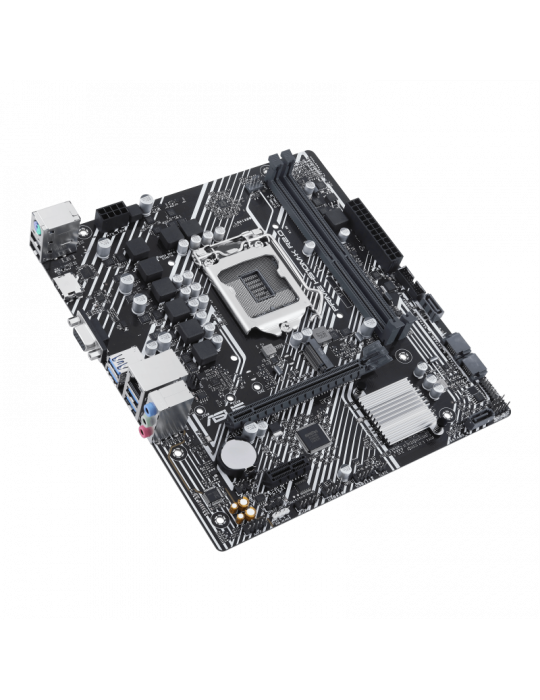

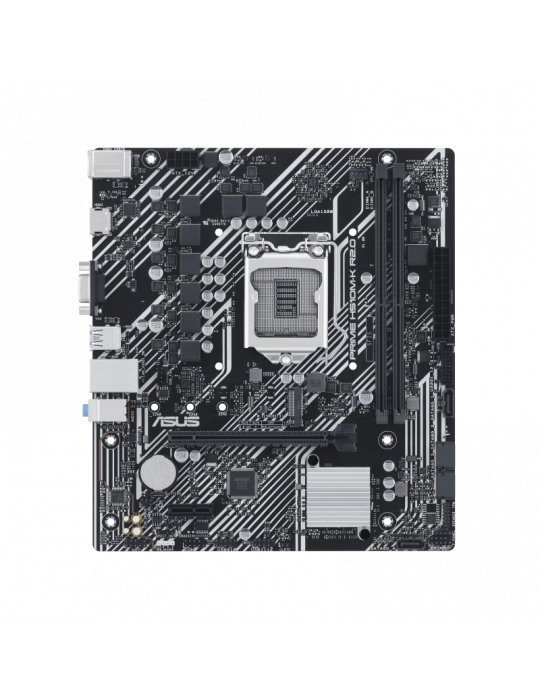

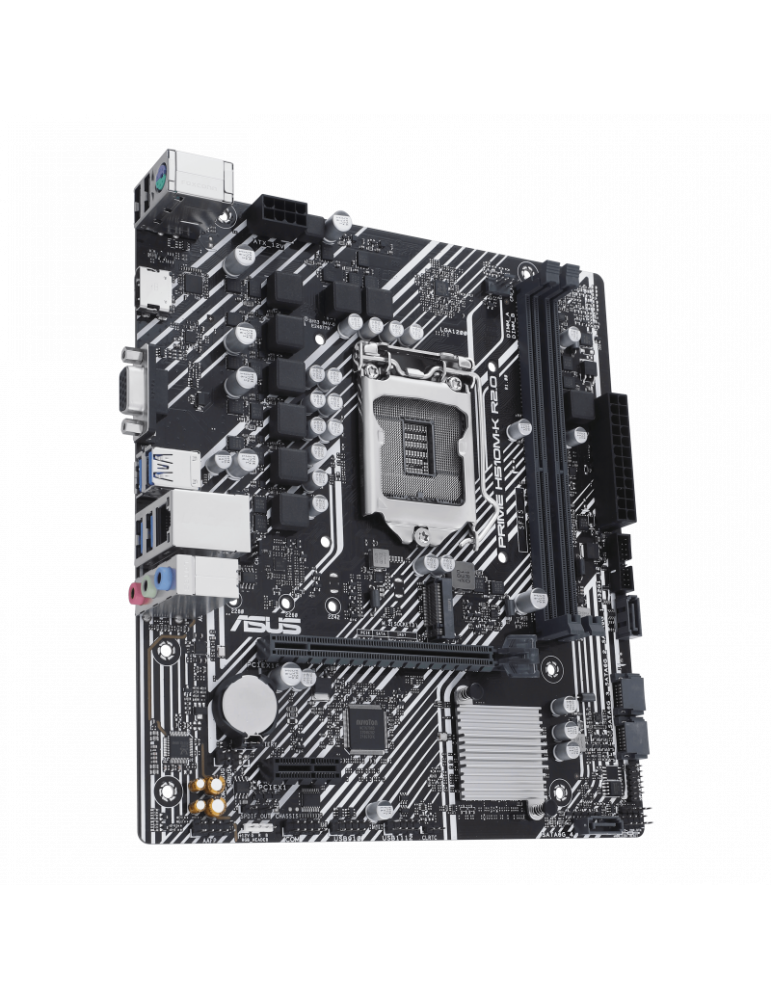

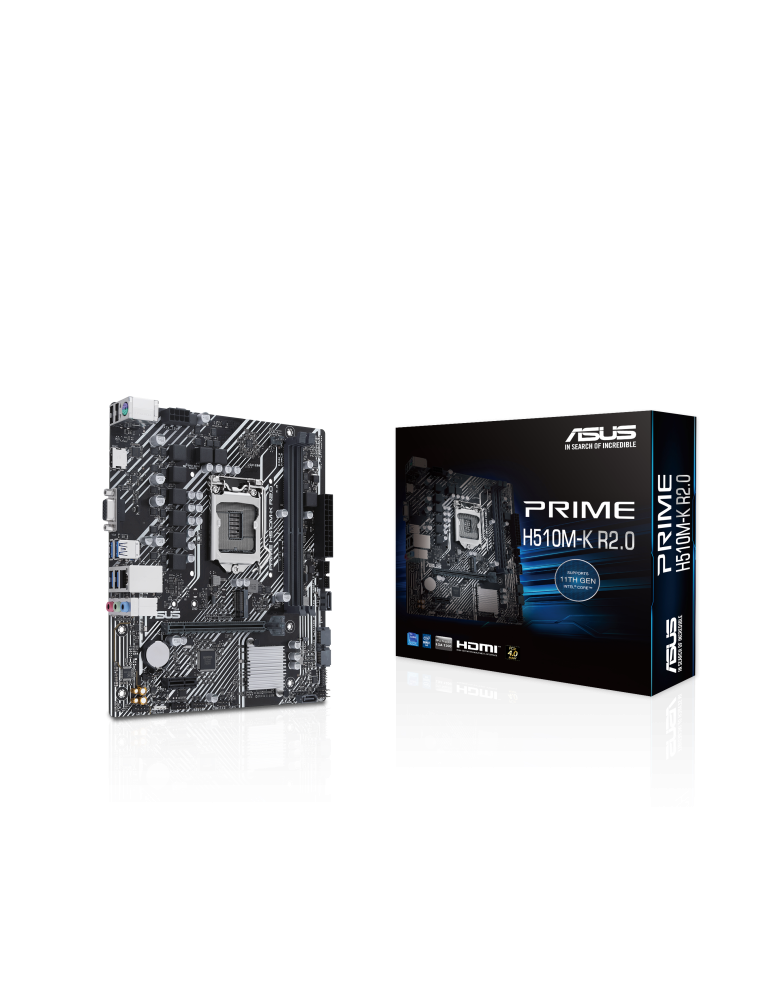

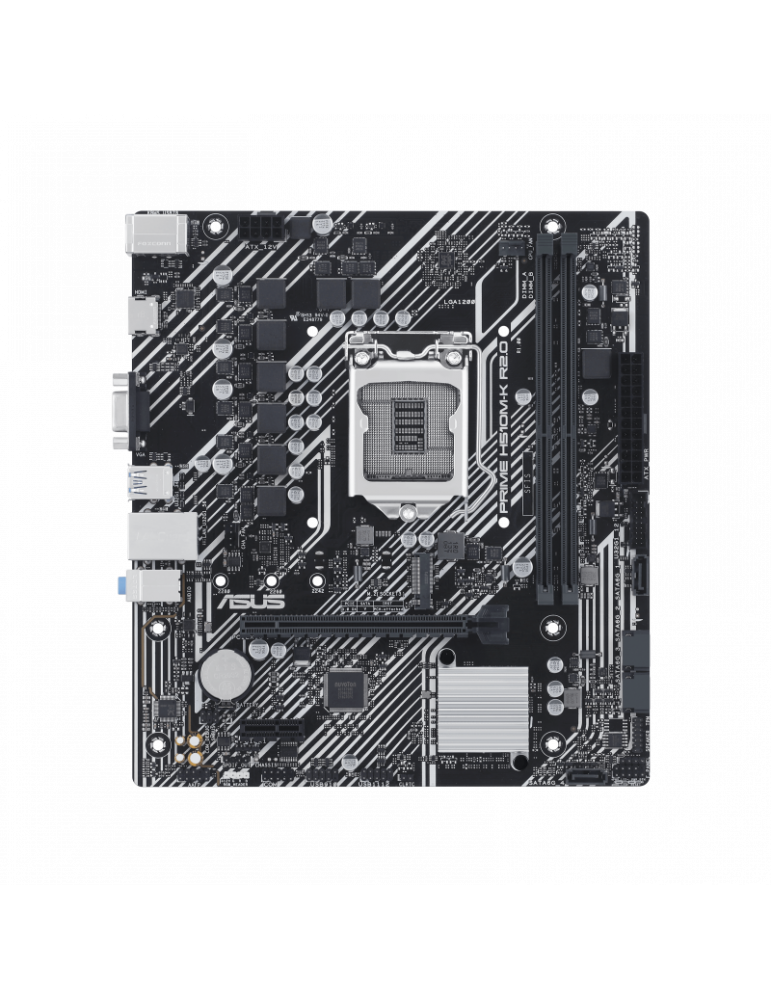

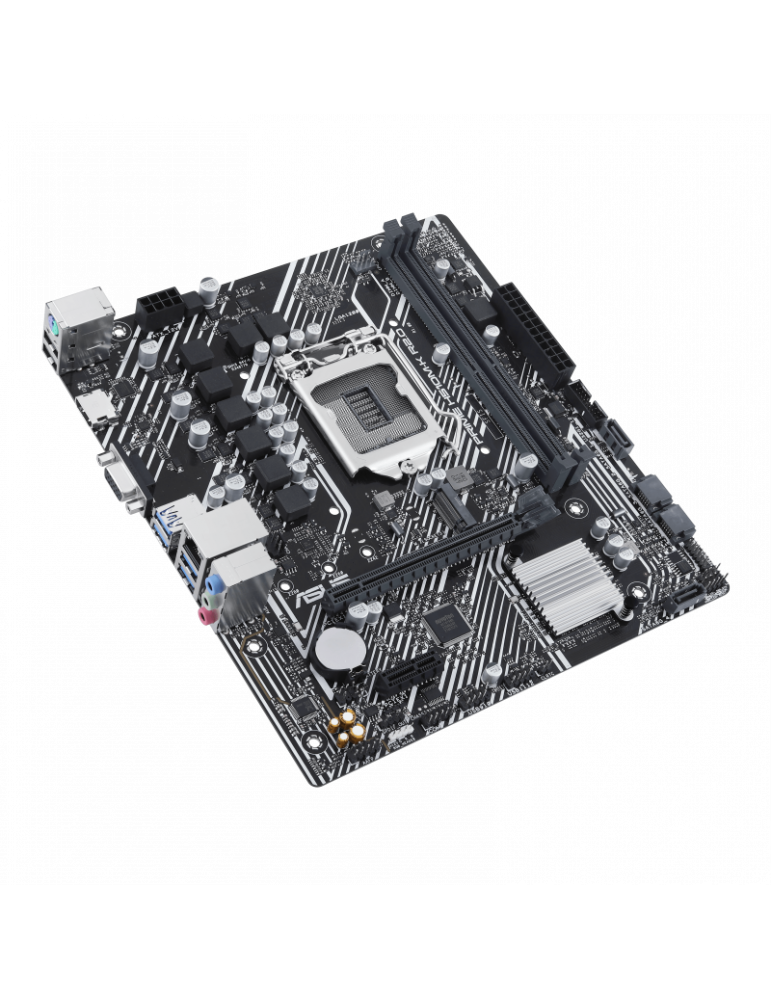

Дънна платка ASUS PRIME H510M-K R2.0, LGA1200, 2xDDR4 - 90MB1E80-M0EAY0
PRIME H510M-K R2.0
36 месеца
133,00 лв.
Условия за доставка
Вземи желания продукт сега, избери подходяща за теб схема на изплащане:
Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!
Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
Поръчка без регистрация
Само попълнете 4 полета| Видео карта | 1 x VGA port; 1 x HDMI™ port** |
| CPU's supported | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list. |
| Чипсет | Intel® H510M Chipset |
| Expansion Slots | Intel® 11th & 10th Gen Processors*; 1 x PCIe 4.0/3.0 x16 slot; - Intel® 11th Gen processors support PCIe 4.0 x16; - Intel® 10th Gen processors support PCIe 3.0 x16; Intel® H470 Chipset; 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H470 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports |
| Тип памет | 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) |

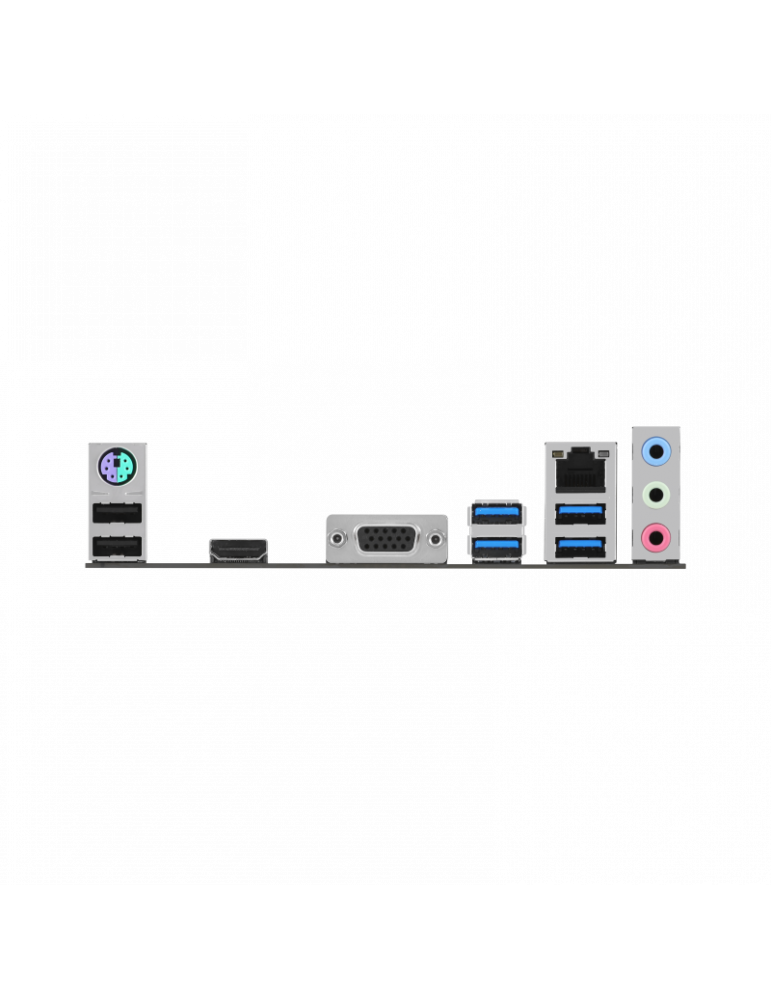

| Вх/Изх | 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x VGA port; 1 x HDMI™ port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port |
| Конектори | 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers |
| LAN | 1 x Realtek 1Gb Ethernet |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Форм фактор | micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
| OS | Windows® 10 64-bit |
| Гаранция | 36 Months |
PRIME H510M-K R2.0
Техническо описание
- Asus
-
LGA 1200 Comet Lake
LGA 1200 Rocket Lake - Intel H510
- Intel
- DDR4
- Micro ATX
- 2
- 36 месеца
-
HDMI
M.2 PCI-E за SSD
PS/2
RJ-45 LAN
USB 2
USB 3
USB Type C
VGA (D-SUB)
