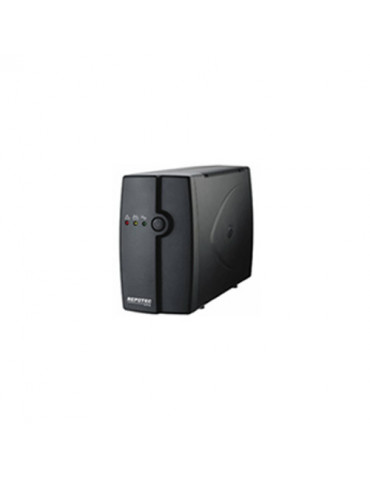

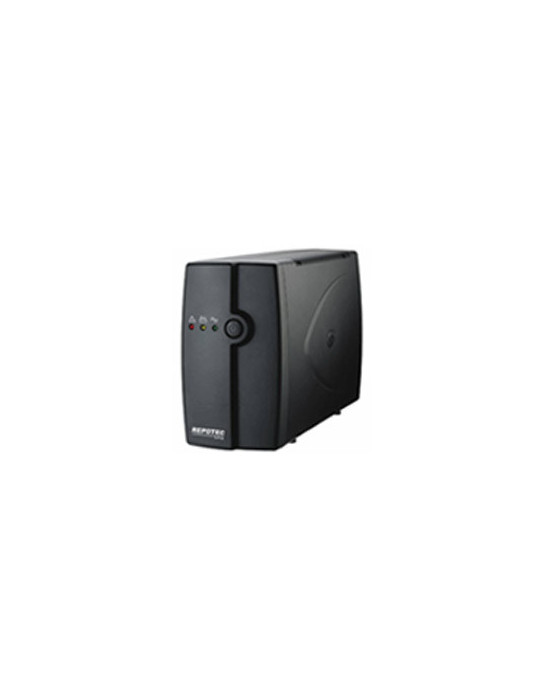

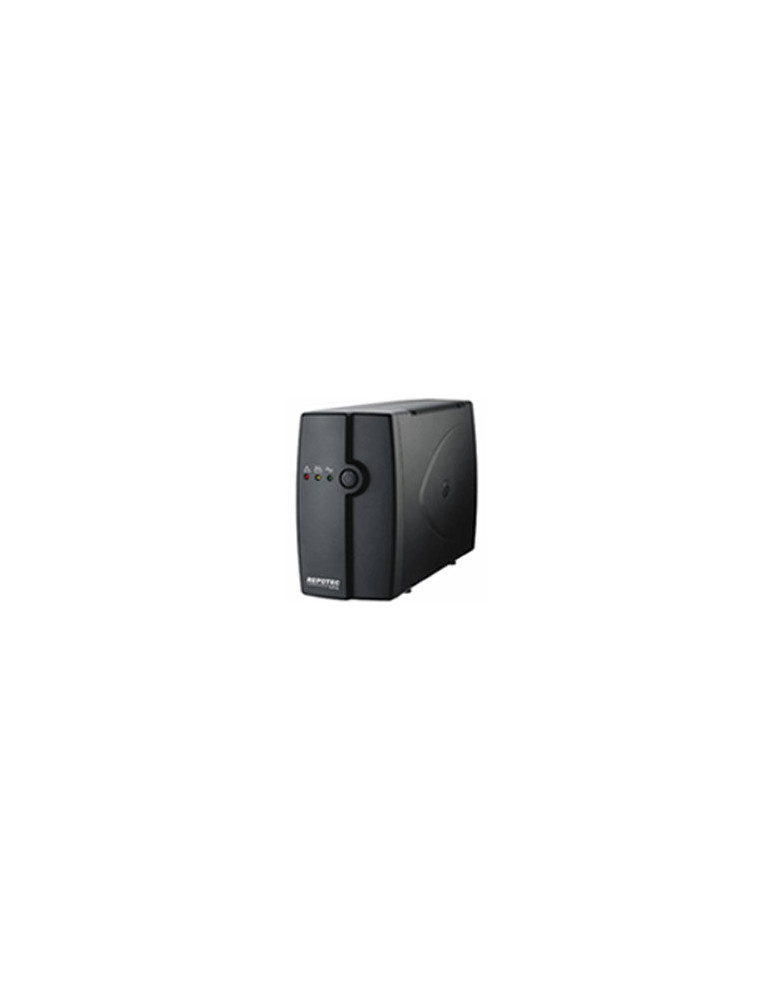

Токозахранващо устройство Repotec RPT-800DU 800VA, AVR, USB
| Производител | Repotec |
| Mnfr Part # | RPT-800DU |
| Модел | RPT-800DU |
| Капацитет | 800VA/480W |
| Type | Line-interactive |
| Input | Voltage:110/115/120VAC or 220/230/240VAC; Voltage Range:-30%+25%; Frequency:50Hz or 60Hz (Auto Sensing). |
| Output | Voltage Regulation(Batt. Mode):110/115/120VAC or 220/230/240VAC +/-10%; Frequency:50Hz or 60Hz +/- 1Hz; Waveform:Simulated Sine wave; Transfer Time:< 6ms (Typical); Outlet:IEC-320/Nema 5-15R 4/4/; Universal/German:2/3. |
| Интерфейси | Communication port:USB or RS232 port |
| Display | LED status indicator:Normal (Green), Батерия (Yellow), UPS cut off (Red) |
| Alarms | Батерия Mode:Beeping twice every 8 second; Low Батерия:Beeping five times every second; Overload:Beeping continuously; Fault:Beeping continuously. |
| Батерия | Voltage:12VDC; Recharge Time:5hr to 90% after complete discharge; Safety Protection:Over Charge & Discharge Protection; Advanced Батерия Management:Yes; Батерия Back-up Time:30 Minutes. |
| Environment | AVR (Auto. Voltage Regulation):2 Boost + 1 Buck; DC Start Function:Yes; Auto. Restart UPS:Yes; Over/Under voltage protection:Yes; No load Cut-off (Green mode):Yes; Slience the Audible Alarm:Yes; Off Mode Charging:Yes; Short Circuit Protection:AC fuse and Electronics circuit(Line mode) . Electronics circuit(Back-up Mode); Lightning/ Surge Protection:99 Joules(110/115/120VAC) / 175 Joules (220/230/240VAC); Modem/Phone protection (Optional):RJ-11; Operating Temperature:0° C - 40° C (32?~104?); Humidity:0-95% (No condensing); Audible Noise:<40 dB at 1M. |
| Standarts | Safety Standard:CE (EN62040-1-1, EN50091-1); EMC Standard:FCC Part 15 Class B, CE(EN50091-2, EN61000-3-2, EN61000-3-3). |
| Размери | 305x98x170mm |
| Гаранция | 24 месеца, 12 месеца за батерията |
RPT-800DU
Техническо описание
- Repotec
- не е избрано
- Line-Interactive
- От 501 VA до 999 VA
- не е избрано
-
RS-232
USB -
EN 61000-3-2
EN 61000-3-3
EN 62040-1
