Дънна платка GB H510M H V2, LGA1200
Дънна платка GB H510M H V2, LGA1200
Дънна платка GB H510M H V2, LGA1200
Дънна платка GB H510M H V2, LGA1200

Дънна платка GB H510M H V2, LGA1200

Gigabyte
59,31 €
Цената е с включен ДДС.
Няма наличност

Изпрати ми известие, когато има наличност

Interested in this product? Drop us an email and we will let you know when it's available for order.

CPU's supported LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors; 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors; L3 cache varies with CPU
Тип памет 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Чипсет Intel® H510 Express Chipset
Видео карта Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3.; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; * The D-Sub port is only available with the 10th Generation processors.
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

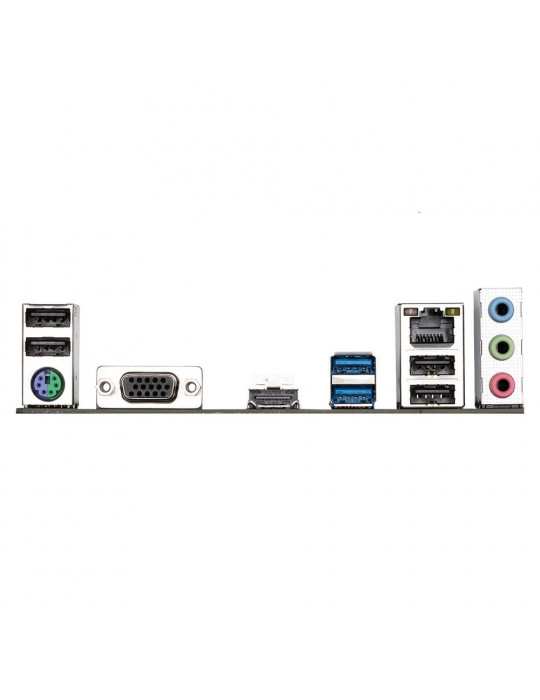

Вх/Изх 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Конектори 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x serial port header; 1 x Clear CMOS jumper
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм фактор Micro ATX Form Factor; 22.6cm x 18.5cm
OS Support for Windows 11 64-bit; Support for Windows 10 64-bit
Гаранция 36 m

  • Марка
  • Референция
    H510M H V2

  • Производител
    Gigabyte
  • Сокет
    LGA1200 Rocket Lake
  • Чипсет
    Intel H470
  • Поддържани процесори
    Intel
  • Поддържана памет на дънна платка
    DDR4
  • Форм фактор
    Micro ATX
  • RAM слотове
    2
  • Гаранция
    36 месеца
  • Портове на лаптоп
    3.5 mm Mono Mic
    3.5 mm Mono Out
    HDMI
    M.2 PCI-E за SSD
    PS/2
    RJ-45 LAN
    USB 2
    USB 3
    VGA (D-SUB)
