Начало Компютърни компоненти Дънни платки Дънна платка Asus PRIME B450M-A II - 90MB15Z0-M0EAY0

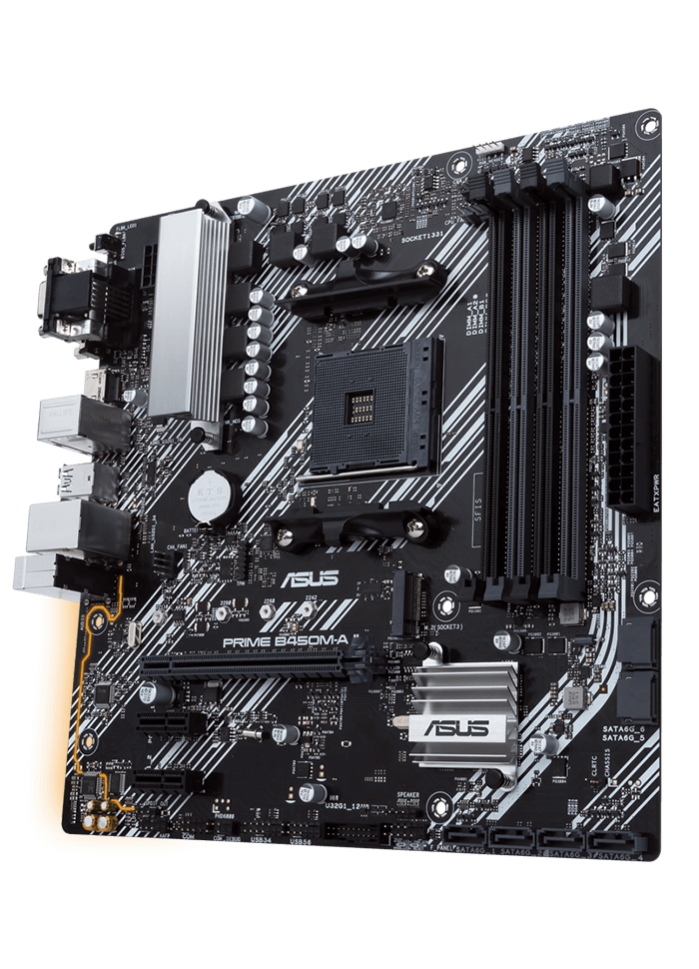

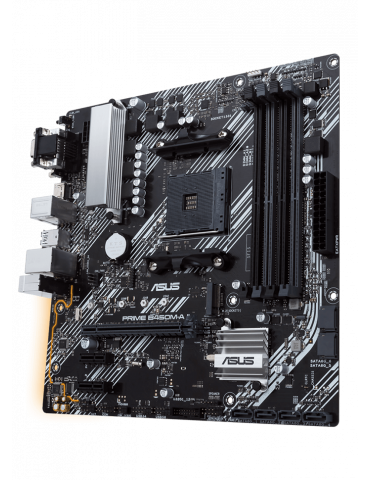

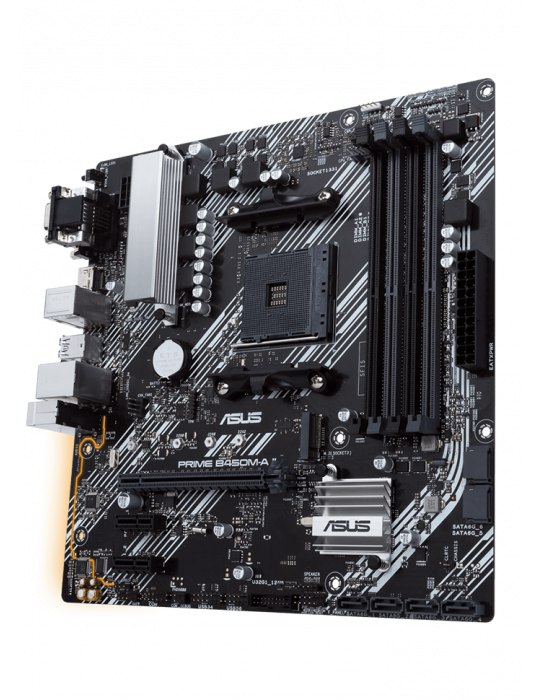

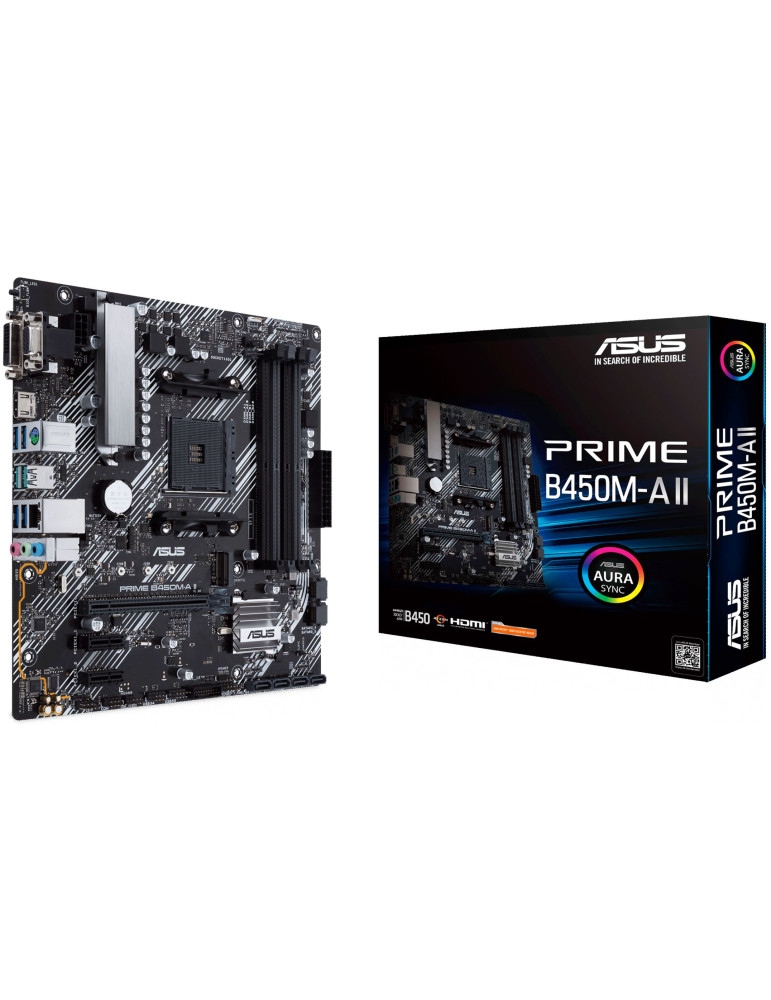

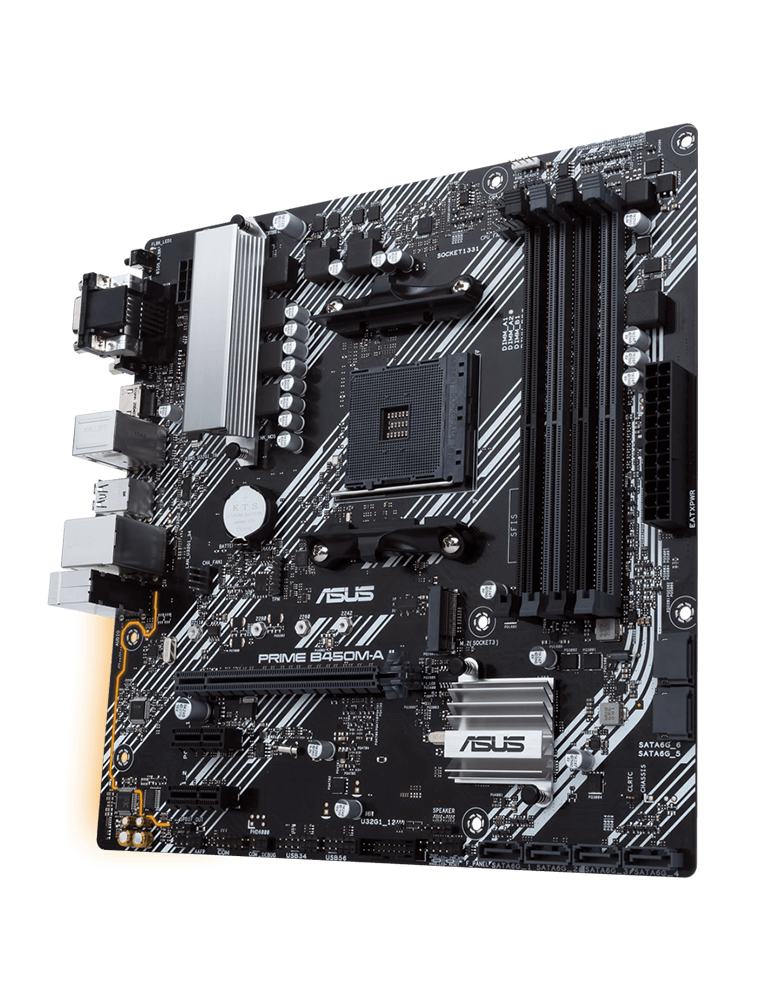

Дънна платка Asus PRIME B450M-A II - 90MB15Z0-M0EAY0

Цена: 199.00лв
  • Гаранция:
    24 месеца

Няма наличност

Добави в желани

Детайлно описание

Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors; * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Chipset AMD B450
Connectors 1 x CPU Fan connector(s) (1 x 4 -pin); 2 x Chassis Fan connector(s) (2 x 4 -pin); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x SPI TPM header; 1 x COM port(s) connector(s); 6 x SATA 6Gb/s connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s); 1 x Clear CMOS jumper(s); 1 x COM port header; 1 x Speaker connector; 1 x RGB Header
CPU's supported AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors; 1 x PCIe 3.0 x16 (x16 mode); 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors; 1 x PCIe 3.0 x16 (x8 mode); AMD Athlon™ with Radeon™ Vega Graphics Processors; 1 x PCIe 3.0 x16 (x4 mode); AMD B450 chipset; 2 x PCIe 2.0 x1
Form Factor mATX Form Factor; 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *; 1 x D-Sub; 1 x DVI-D; 1 x HDMI 2.0b

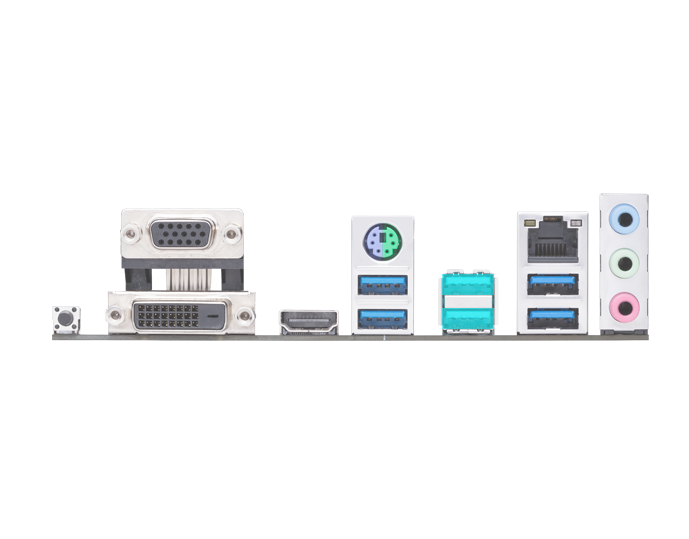

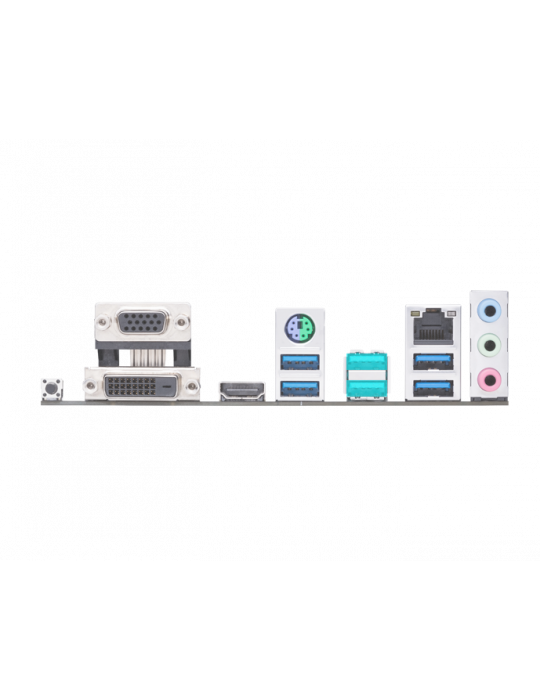

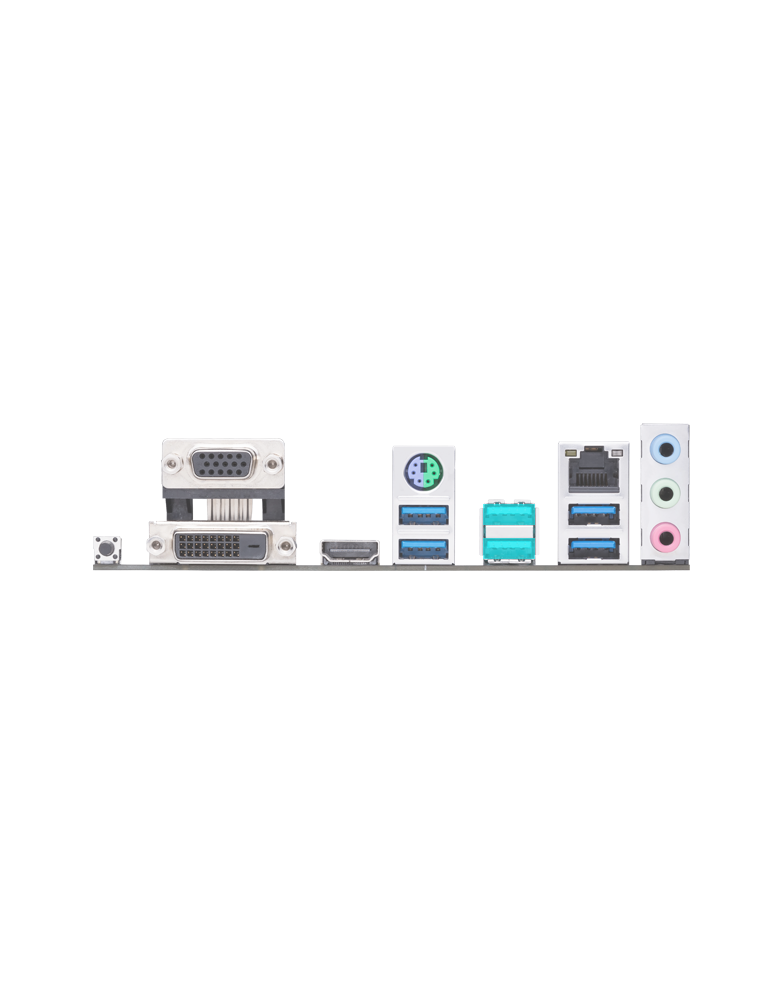

I/O 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI-D; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A); 4 x USB 3.2 Gen 1 (blue) Type-A; 3 x Audio jack(s); 1 x BIOS FlashBack™ Button(s)
LAN Realtek® RTL8111H; ASUS LANGuard
Memory type 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors; 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.
OS Windows® 10 64-bit; Windows® 7 64-bit *2
Storage Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports; 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *1; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); Athlon™ with Radeon™ Vega Graphics Processors : *1; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode); 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : 2 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10; AMD B450 chipset : 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10
Гаранция 36 месеца

Изображенията на "Дънна платка Asus PRIME B450M-A II - 90MB15Z0-M0EAY0" с продуктов код "ASUS PRIME B450M-A II /AM4" са примерни и могат да имат разлики с действителния продукт.
Ако забележите такива, моля да ни пишете на [email protected]
