Дънна платка Asus TUF H310M-PLUS GAMING, сокет LGA1151 Coffee Lake

Сокет: LGA1151 Coffee Lake (съвместим с процесори Intel 8-мо поколение)
Памет: 2 x DDR4 Максимално 32GB 2666/ 2400/ 2133 MHz
Слотове: 1 x PCIe 3.0/2.0 x16, 2 x PCIe 2.0 x1, 1 x M.2
USB портове: 2 x USB 3.1, 4 x USB 2.0
Видео изходи: DVI-D, HDMI
Размер: Micro ATX
Гаранция: 36 месеца

  • Марка:
  • Код:
    ASUS-MB-TUF-H310M-PLUS-GAMING
Цена: 179.00лв
  • Гаранция:
    24 месеца

Няма наличност

Добави в желани

Детайлно описание

CPU Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset Intel® H310
Memory Intel® H310 Chipset
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots Intel® H310 Chipset
1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 2.0 x1
Storage Intel® H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)*1
4 x SATA 6Gb/s port(s)
LAN Intel® I219V, 1 x Gigabit LAN Controller(s)
TUF LANGuard
Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
Special Features ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS OptiMem:
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- EZ XMP ASUS Exclusive Features
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
AURA: RGB Lighting Control
M.2 Onboard(The latest transfer technologies with up to 20 Gb/s data transfer speeds)
Operating System Support Windows® 10 64-bit

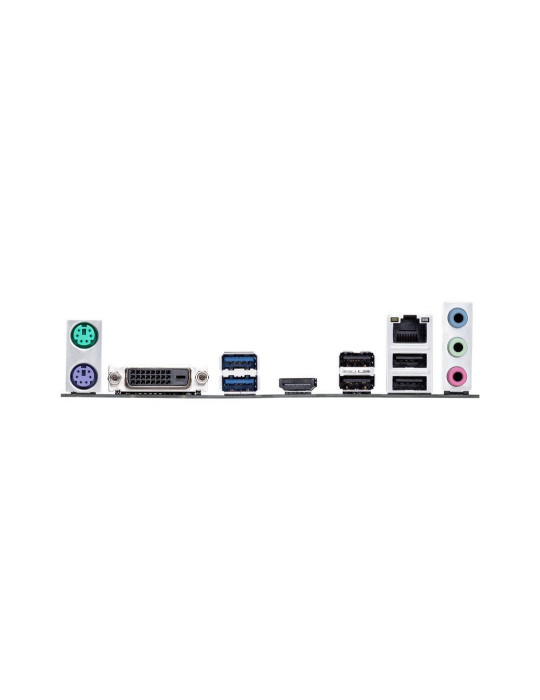

Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) ,
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports 1 x RGB Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search
Manageability WOL by PME, PXE
Support Disc Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Form Factor mATX Form Factor
8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )
